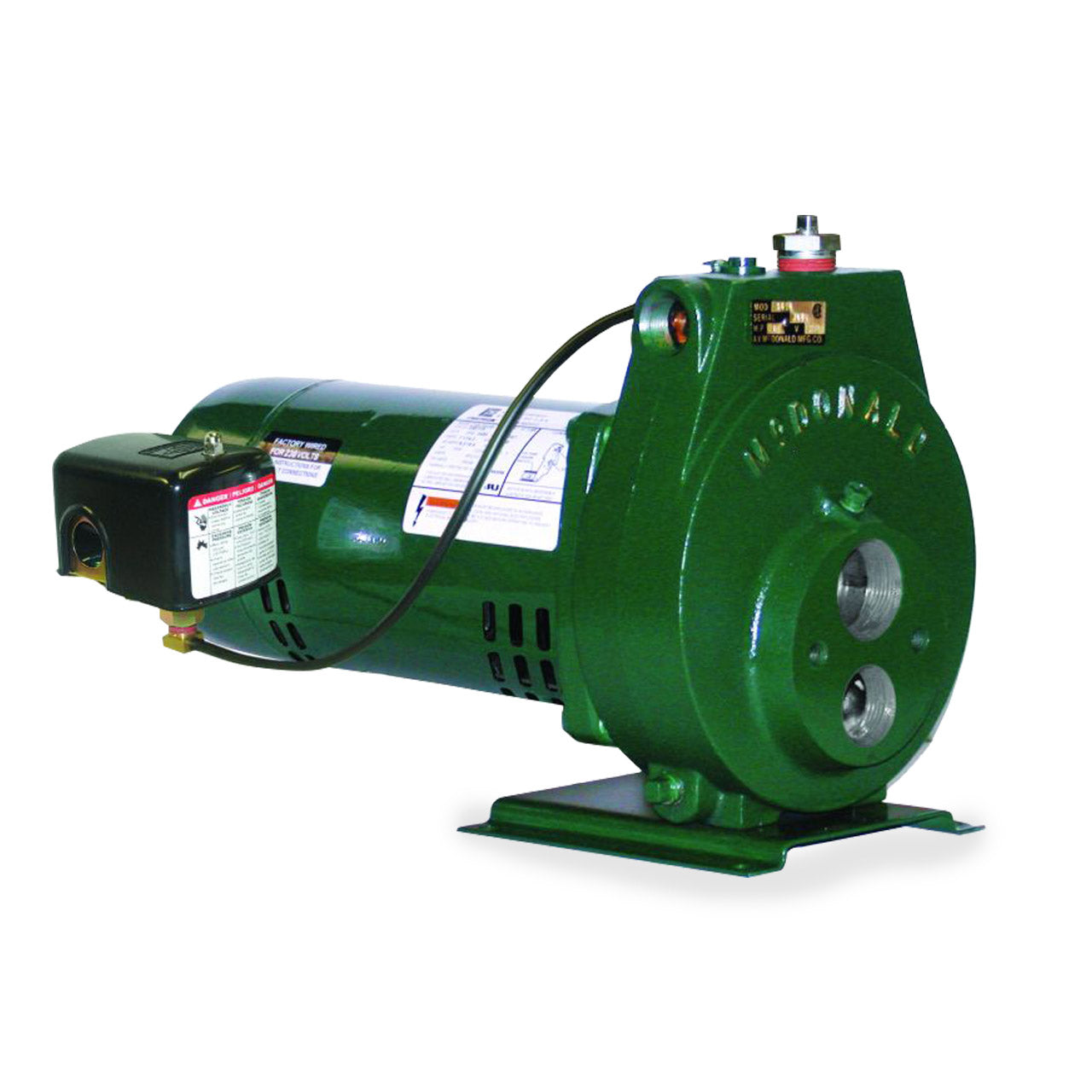

A.Y. McDonald 8610 Convertible Shallow Well Jet Pump 1.0 HP 230/115V
A.Y. McDonald 8610 Convertible Shallow Well Jet Pump 1.0 HP 230/115V
SKU : AYM8610
In Stock Quantity:0
:
Brand
:
Regular price
$893.10 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
A.Y. McDonald offers a full line of shallow well and convertible jet pumps built for years of trouble free operation, with high-efficiency impellers and diffusers. With appropriate jet ejector the 8600 series convertible capacity is up to 65 gallons per minute (GPM) and pressures to 80 PSI.
All 8600 Series 1-HP Convertible Shallow Well Jet Pumps come with a 1-1/4” suction pipe and 1” top or side discharge. The sizes range from 1/3 to 1 horsepower (HP).
A.Y. McDonald 8600 Series Convertible Shallow Well Jet Pump Applications
- Lake Homes and Cabins
- Shallow Well Pumping
- Irrigation
A.Y. McDonald 8600 Series Convertible Shallow Well Jet Pump Features
- Square Flange Motor 7/16" - 20 Threads
- Deep Well Performance to 120 Feet to Water
- Pressure Switch Factory Settings:
- 1/3 and 1/2 HP = 20-40 PSI
- 3/4 and 1 HP = 30-50 PSI
- Two Pipe Tapping 1” x 1-1/4”
* Maximum Amp. Draw at Factory Voltage Setting.
Specifications
Specifications
A.Y. McDonald 8610 Convertible Shallow Well Jet Pump Specifications
- DISCHARGE SIZE: 1"
- INLET SIZE: 1-1/4"
- MAXIMUM CAPACITY: 24 GPM
- MAXIMUM HEAD: 64 PSI
- HORSEPOWER: 1.0 HP
- IMPELLER MATERIAL: Plastic
- BODY CONSTRUCTION: Cast Iron
- MOTOR TYPE: Square Flange Motor 7/16" - 20 Threads
- VOLTAGE: 230/115V
A.Y. McDonald 8600 Series Convertible Shallow Well Jet Pump Flow Chart
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
A.Y. McDonald 8600 Series Convertible Shallow Well Jet Pump Product Resources
Download A.Y. McDonald 8600 Series Shallow Well Jet Pump Submittal Data Sheet
Download A.Y. McDonald Jet Pump Catalogue
A.Y. McDonald 653JP Single-Stage Shallow Well Jet Ejector High Capacity 1.0 HP
A.Y. McDonald 657JP Single-Stage Shallow Well Jet Ejector High Capacity 1.0 HP
A.Y. McDonald 901JP Single-Stage Deep Well Jet Ejector TP 30/50' 0.75 & 1.0 HP
A.Y. McDonald 902JP Single-Stage Deep Well Jet Ejector TP 50/80' 1.0 HP
A.Y. McDonald 903JP Single-Stage Deep Well Jet Ejector TP 80/100' 1.0 HP
A.Y. McDonald 808JP Single-Stage Deep Well Jet Ejector SP 30/50' 0.75 & 1.0 HP
A.Y. McDonald 809JP Single-Stage Deep Well Jet Ejector SP 50/80' 1.0 HP
A.Y. McDonald 810JP Single-Stage Deep Well Jet Ejector SP 80/100' 1.0 HP
