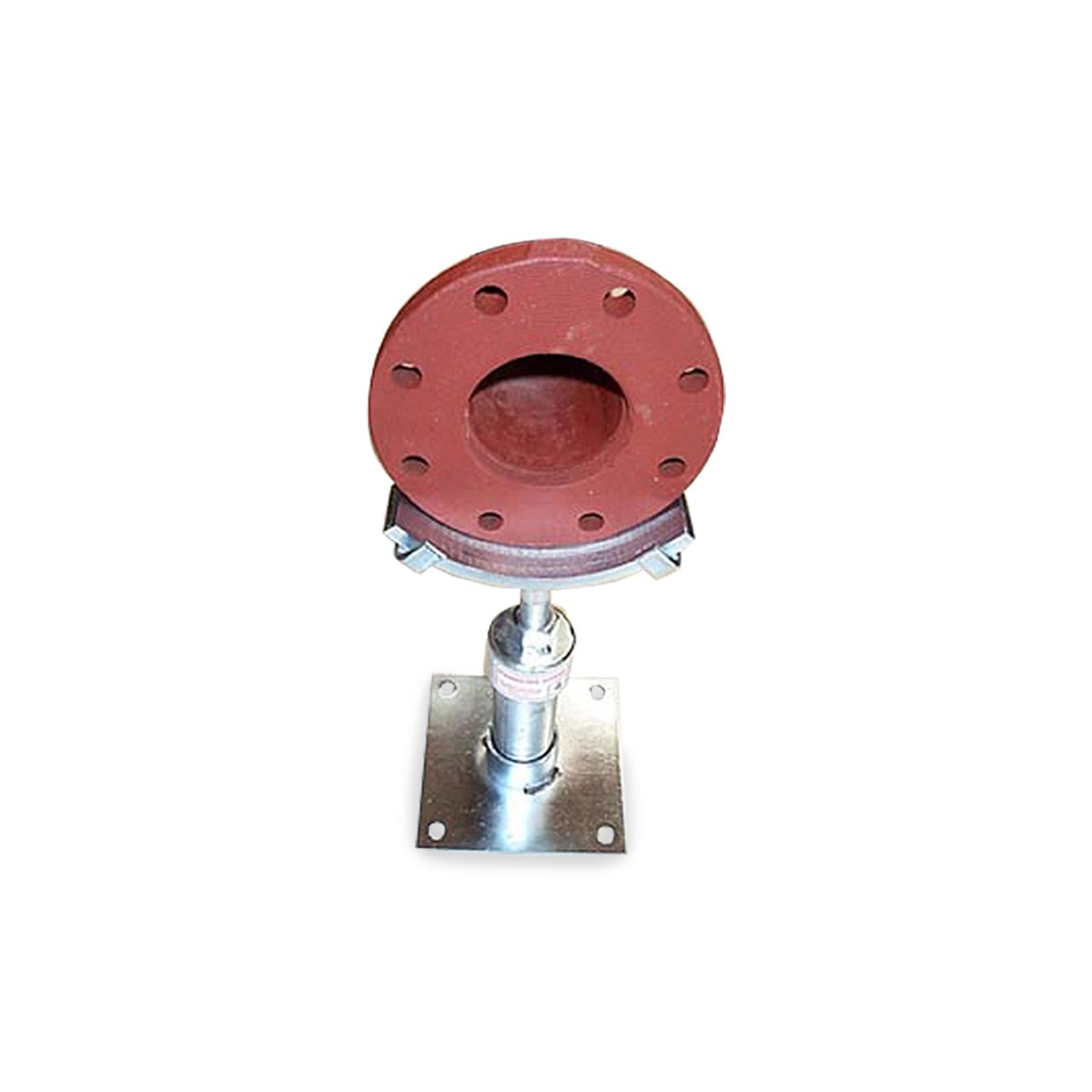

Standon Model S9603 Flange Cradle Pipe Support 3.0"

The Standon Model # S96 Flange Cradle Pipe Support was designed for use not only in new installations, but also as an economical replacment on existing facilities. The innovative saddle design is radiused to fit snugly under your assembled flange configurations. Centering tabs maintain position during seismic activity and are spaced to avoid bolt position conflict.

The Standon Flange Cradle Support comes with an oversized base and an adjustable collar allowing up to 4" of fine adjustment.

Standon Model S96 Flange Cradle  Support Features

• Accepts Standard IPS Pipe - No Threading Required
• Comes Complete with Over-Sized Anchor Able Base Plate
• Available in Sizes 2" through 24"
• Manufactured to Fit CL 125 Flanges
• Corrosion Resistant, Electro Galvanized Finish
• Available in 304SS, 316SS & HDG Finish  Must Call for Pricing

Standon Model S96 Flange Cradle Pipe Support Specifications

• Flange Plate: ASTM A36
• Collar/Base Cups: ASTM A53 D.O.M Tubing
• Threaded Stud: ASTM A36; Rolled Thread, Grade ASTM A307
• Base Plate: ASTM A36 Sheet Steel - .25" Plate
• Support Size: 3.0"

Standon Model S96 Dimensions

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Standon Model S96 Product Resources

Download Standon Model S96 Flanged Pipe Support Specifications
