Item Discontinued, See Replacement: Myers MEOSP50BRM1 Bronze Impeller Submersible Effluent Pump 0.5 HP 115V 1PH 10' Cord Manual

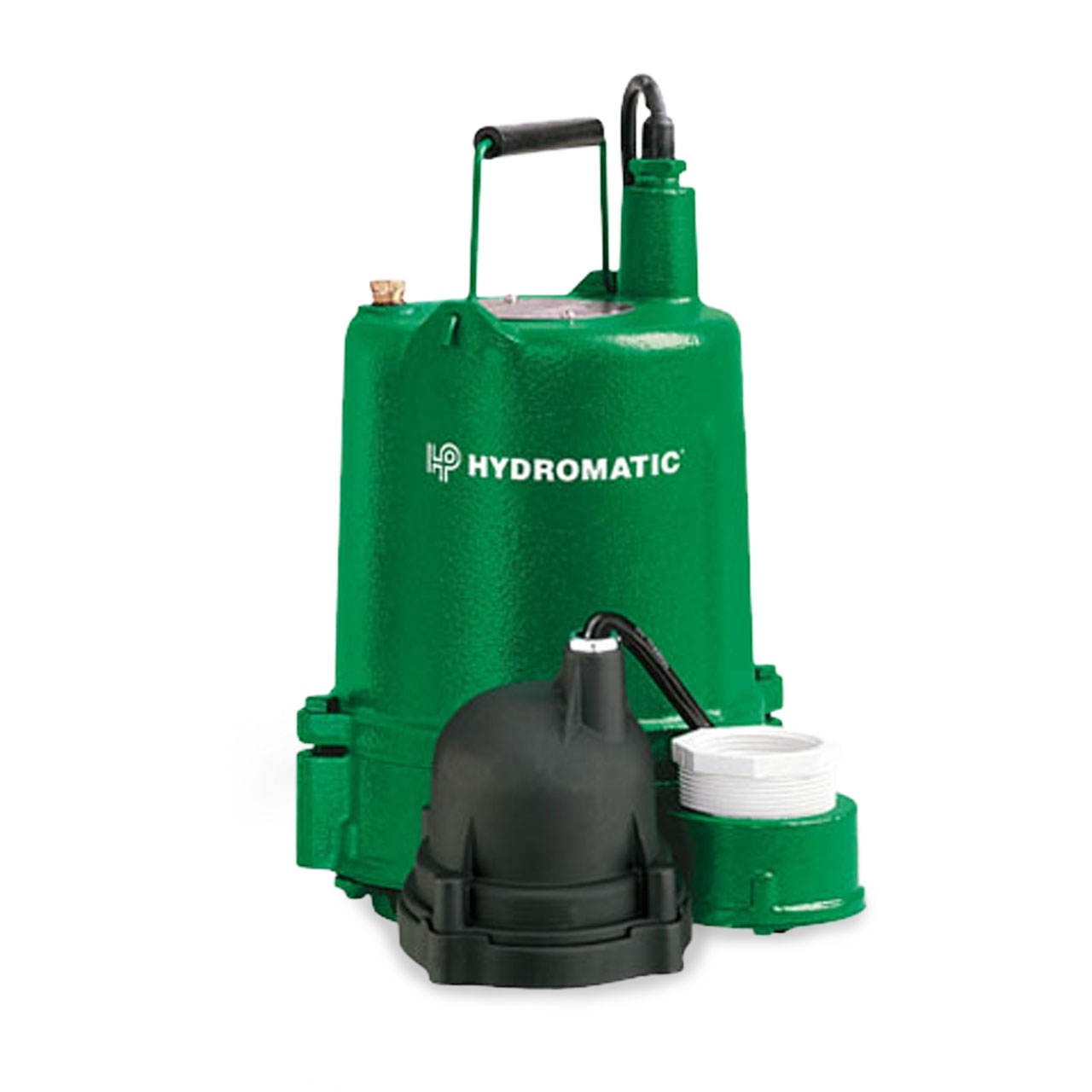

Hydromatic OSP50BR Description

The Hydromatic OSP50BR submersible pump is specifically designed to meet the demands of residential sump, elevator pit, septic tank effluent, industrial circulator and transfer tank applications. The 1-1/2 inch NPT discharge pump is available with a powerful 1/2 horsepower motor, and can handle capacities up to 60 gallons per minute and heads to 25 feet. The pump’s nonclogging bronze impeller, which is threaded to a stainless steel shaft, provides long life even in demanding applications, and is capable of handling up to 5/8 inch spherical solids and lint. The OSP50AB’s oil-filled motor provides superior cooling characteristics, allowing the motor to run cool and quiet for years. This oil-filled design also provides permanent lubrication of the shaft bearings, minimizing maintenance and extending the service life of the pump. In addition, to protect against overheating, the motor windings contain an automatic reset thermal overload. Water level is controlled by a proven diaphragm-type pressure switch, which is sealed in a watertight housing. Double-diaphragm construction provides added protection in preventing liquid or foreign matter from entering switch.

Hydromatic OSP50BR Typical Application

• Continuous Duty Application
• Septic Tank Effluent
• Flood Control Units
• Industrial Circulators
• Elevator Pits
• Basement Sumps

Hydromatic OSP50 Superior Features

• Continuous duty rated
• Carbon/Ceramic type 21 mechanical seal
• Oil-filled motor with automatic reset thermal overload for maximum protection
• Upper and lower single-row ball-bearing construction
• Oil-filled motor
• Manual pump operation – switch not included

Hydromatic OSP50BRM1 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 0.5 HP
• RPM: 1750
• MAXIMUM HEAD: up to 25'
• MAXIMUM CAPACITY: up to 60 GPM
• DISCHARGE PIPE SIZE: 1.5" NPT Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 5/8"
• CORD LENGTH: 10' Power Cord
• VOLTAGE: 1ø, 115V
• FULL LOAD AMPS: 9.5
• MOTOR: Split Phase
• IMPELLER CONSTRUCTION: Bronze

Hydromatic OSP50 Pump Curve
