Item Discontinued, See Replacement: Myers 2NFL52-12E High Head Effluent Pump 12 GPM 0.5 HP 230V 1PH 20' Cord

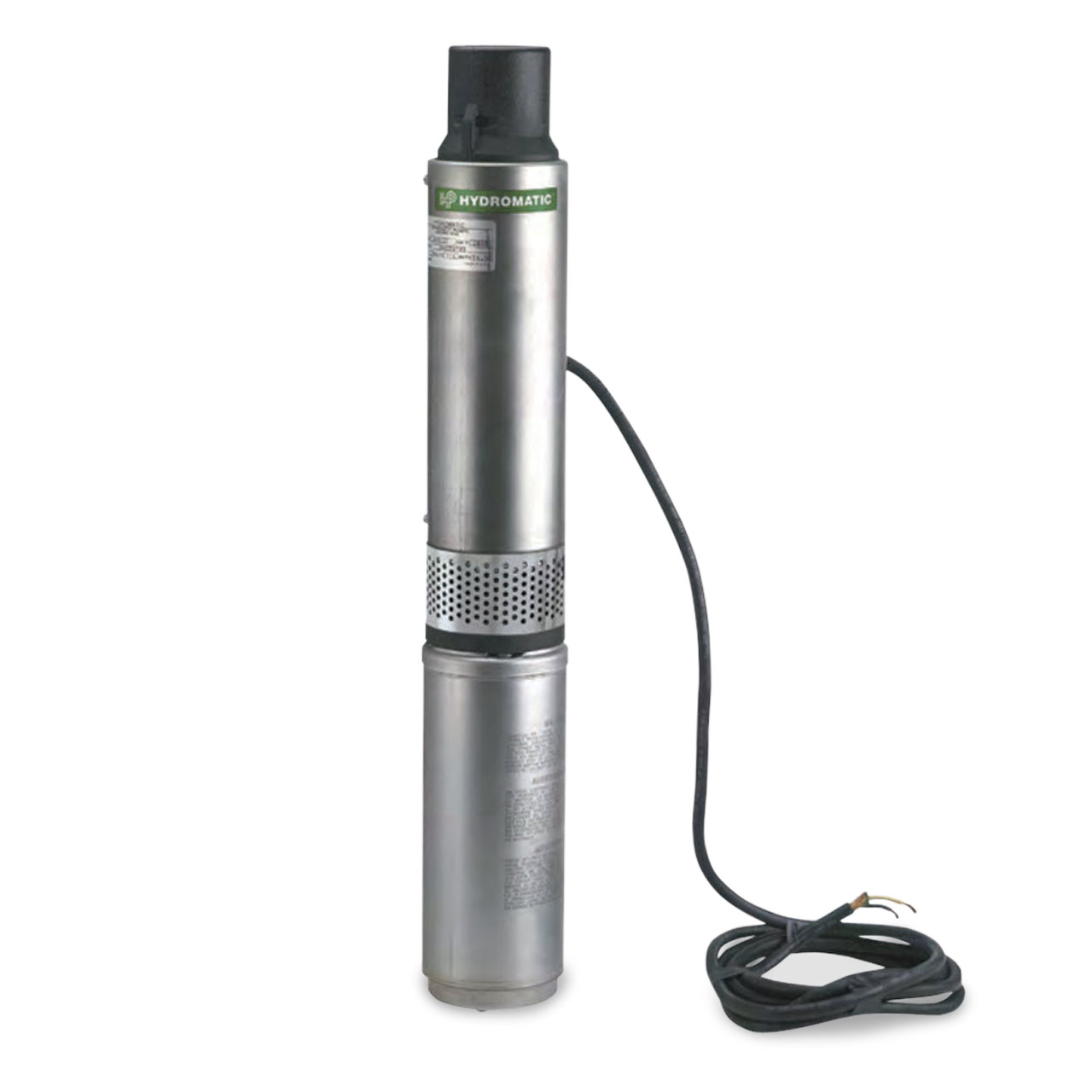

Hydromatic HE12 Description

Hydromatic high head filtered effluent pumps are designed specifically for high pressure application.

Hydromatic HE12 Typical Application

• High Head Septic Tank and Treated Effluent
• Process Water
• High Head Sump

Hydromatic HE12 Features

• High-pressure capacity
• Corrosion-resistant design for long life
• Dependable field-proven motor
• Built-in overload and electric surge protection
• Hermetically sealed windings
• Continuous duty rating and frequent cycling capabilities
• Powerful, yet lightweight for easy handling and installation
• UL and CSA rated
• 1/2 HP Rated for 300 Starts Per 24 Hours

Hydromatic HE12 Technical Details

• BODY CONSTRUCTION: Stainless Steel
• HORSEPOWER: 0.5 HP
• MAXIMUM HEAD: up to 18.5'
• MAXIMUM CAPACITY: up to 248 GPM
• DISCHARGE PIPE SIZE: 1.25" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 1/16"
• AMP DRAW (full load): 10.5
• CORD LENGTH: 50'; Type SJTW, STW-A
• VOLTAGE: 1ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 122°F
• MOTOR: Built-In Overload and Electric Surge Protection
• IMPELLER CONSTRUCTION: Two Vane Semi-Open, Thermoplastic

Hydromatic HE12 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic HE High Head Pump Product Resources

Download Hydromatic HE High Head Pump Sales Brochure

Download Hydromatic HE High Head Pump Performance Data

Download Hydromatic HE High Head Pump Specification Data

Download Hydromatic HE High Head Pump Installation & Service Manual
