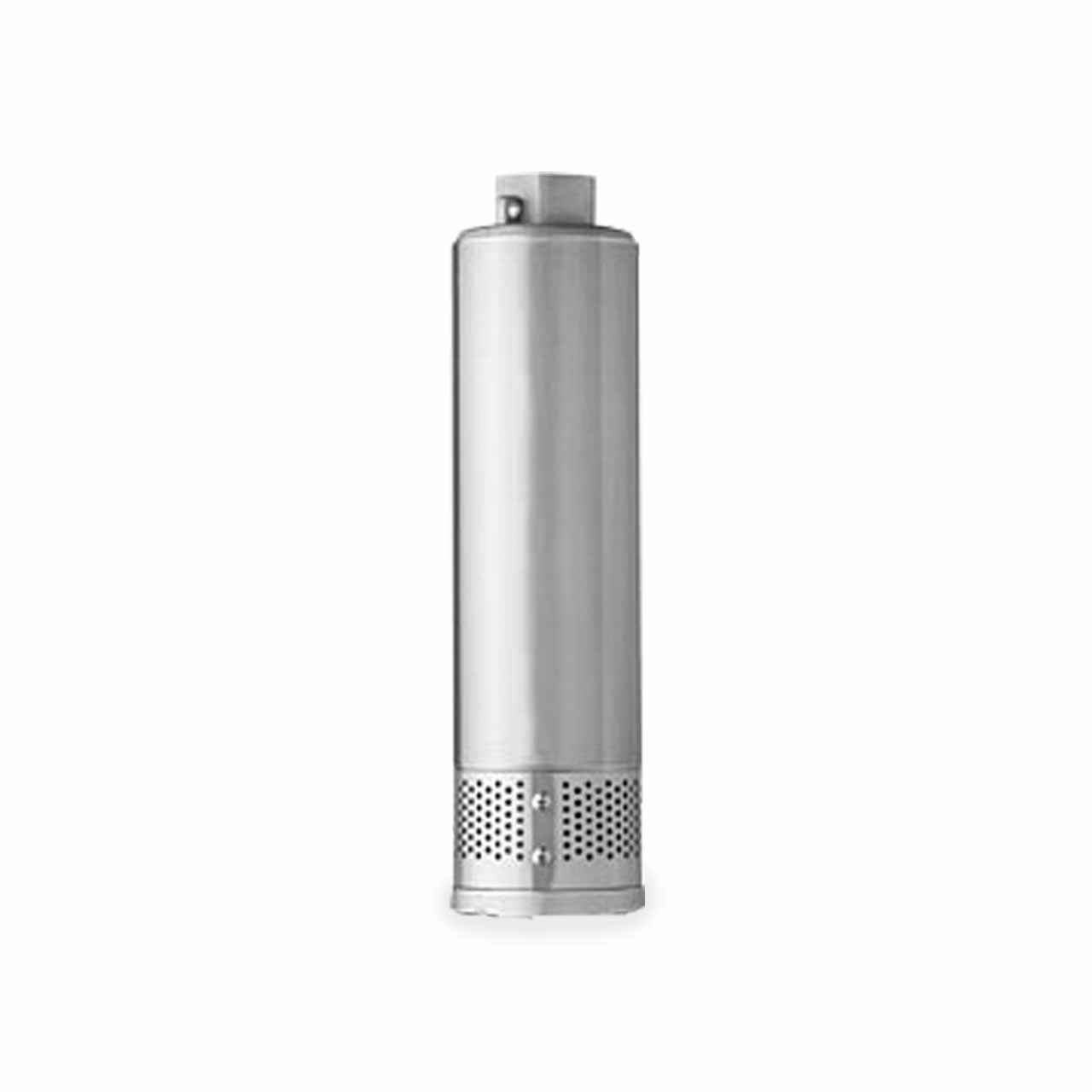

Myers ST5-8PLUS-2 4" Submersible Pump End 8 GPM 0.5 HP

Price: $726.33
Quantity:
+ -
Usually ships within 2 weeks
SKU: MYRST58PLUS2


Shipping Weight:
8.0 LBS
Shipping Dimensions
Length: 13 In
Width: 5 In
Height: 5 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Myers 4" Submersible Predator Series Pump End Description

The Predator Plus Series 4-inch submersible pumps have a proven track record for reliability and performance and are the preferred brand by many industry professionals. Stainless steel construction and self-lubricating impellers provide reliable performance under the most demanding conditions. The Predator Plus also features the PENTEK® XE Series, high-thrust motor for increased efficiency and extended service life.

Myers 4" Submersible Predator Series Pump End Typical Application

  • Water Systems - Residential, Industrial, Commercial, Multiple Housing and Farm Clean Water Use.

Myers 4" Submersible Predator Series Pump End Features

  • Stainless Steel - Shell, Discharge Bowl, Shaft and Coupling, Wear Ring and Suction Screen - all Lead Free.
  • Gritty Performance - Self Lubricating Impellers Resist Abrasion from Grit and Sand - Teflon® Impregnated Staging Proven to Outlast the Competition.
  • Supreme Power - Features the High-Thrust PENTEK XE Motor for the Ultimate in Power, Efficient Performance and Longer Life. Thermal Overload and Lightning Protected.
  • On the Job - Field Serviceable, Threaded Pump Assembly.
  • Nothing Better - Top-of-the-line 4" Submersible Pump is Unequaled in the Marketplace
  • An Eye for Safety - Built-in Eyelet for Safety Line Connection

Myers ST5-8PLUS-2 Predator Series Pump End Specifications

  • DISCHARGE SIZE: 1.25” NPT
  • NOMINAL FLOW RATING: 8 GPM
  • HORSEPOWER: 0.5 HP
  • MAXIMUM CAPACITY: up to 13 GPM
  • MAXIMUM HEAD: up to 390'
  • STAGES: 9
  • IMPELLER DESIGN: Floating Stack
  • IMPELLER MATERIAL: Engineered Composite
  • BODY MATERIAL: 300 Series Stainless Steel

Myers Submersible Predator Series Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers 4" Submersible Predator Series Pump End Product Resources


Download Myers Predator Plus Specifications

Download Myers Predator Plus Manual

MYERS LIMITED WARRANTY

Myers® warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below

ProductWarranty Period whichever occurs first:
Jet pumps, small centrifugal pumps, submersible pumps and related
accessories
12 months from date of original installation, or 18 months from date of manufacture
Fibrewound Tanks5 years from date of original installation
Fibrewound Tanks5 years from date of original installation
Sump/Sewage/Effluent Products12 months from date of original installation, or 36 months from date of manufacture
Battery Backup Units
MBSP-2, MBSP-2C
MBSP-3, MBSP-3C
12 months from date of original installation, or 18 months from date of manufacture
24 months from date of original installation, or 30 months from date of manufacture
Wastewater Solids Handling Pumps12 months from date of shipment from factory or 18 months from date of manufacture

Our warranty applies only where such products are used in compliance with the requirements of the applicable product catalog and/or manuals. For additional information, please refer to the applicable standard limited warranty featured in the product manual.

Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.

Your only remedy, and MYERS’s only duty, is that MYERS repair or replace defective products (at MYERS’s choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.

MYERS SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.

THE FOREGOING LIMITED WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING LIMITED WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION PROVIDED HEREIN.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and You may also have other rights which vary from state to state.

This Limited Warranty is effective April 1, 2014 and replaces all undated warranties and warranties dated before April 1, 2014.
