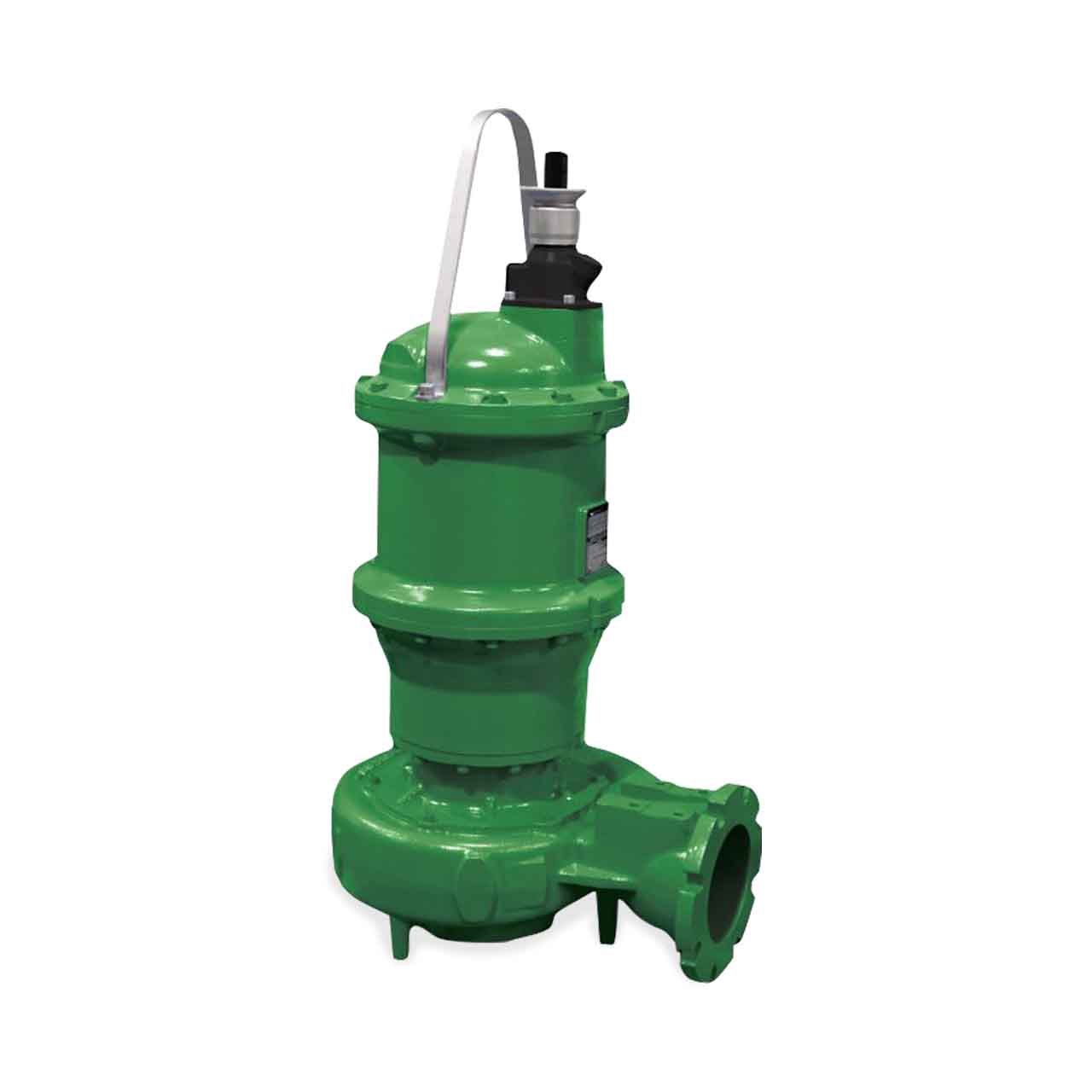

Deming 7365N-342-26-10N Demersible Non Clog Pump 3.0 HP 208-230V 1PH 3VRA Vortex

Price: $6,972.00
Quantity:
+ -
Usually ships within 5 weeks
SKU: DEM7365N3422610N


Shipping Weight:
229.0 LBS
Shipping Dimensions
Length: 15 In
Width: 11 In
Height: 31 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Deming 7365N Series Demersible Non Clog Pump

Deming Demersible Solids Handling Non-Clog Pumps are used in industrial wastewater applications and have a 4" spherical solids handling capability to easily pass the solids encountered in most industrial environments. Deming Demersible flows to over 5,700 GPM and heads in excess of 265 feet. Deming Demersible Series is designed for continuous operation and is made with heavy duty materials of construction for simplified maintenance.

Deming 7365N Series Demersible Non Clog Pump Applications

  • General Drainage
  • Storm Water Run-Off
  • Building Service
  • Power and Utility Plants
  • Polution Control

Deming 7365N Series Demersible Non Clog Pump Features

  • Non Clogging - Demersible 7365 Series Non Clog Pumps Provide Exceptional Clogging Resistance against Solids in the Waste Stream.
    • Solids Handling Capability of up to 4"
    • Available with Vortex Impellers which Provide Best Non Clogging Performance
    • Pump Out Vanes at Backside of Impeller
    • Clog Tested with Solids like Ropes, Rags and Stringy Material
  • High Efficiency - Demersible 7365 Series Non Clog Pumps Provide Unmatched Performance Efficiencies.
    • Available with Mono Vane, Dual Vane & Tri-Vane Impellers that Provide High Hydraulic Efficiencies
    • Proven & Tested Deming Hydraulic Designs
    • Inverter/VFD Compatible Motors for Sustained High Efficiencies
  • Built to Last - Demersible 7365 Series Non Clog Pumps are Built to Last. Demersible Non Clog Pumps Provide Highest Reliability and Trouble Free Operation.
    • Tapered Shaft with Tapered Impeller Bore for Easy Attachment & Vibration Reduction
    • Rugged Cast Iron Construction
    • Heavy Duty Oil Lubricated Bearings
    • Class F Motor Insulation System for Long Winding Life
    • Oil Cooled Motor for Superior Thermal Management
  • Flexibility & Availability - Demersible 7365 Series Pumps are Available:
    • With Dual & Tri Voltage Motors and Separately Sold Cords
    • In Optional Explosion Proof Models for Applications in Class I Division 1 Groups C&D T4 Environments (CSA Certified)
    • Are Available in Industry Best Lead Time of 3 Weeks
  • Simplified Maintenance - Demersible 7365 Series Non Clog Pumps are known for Features that Simplify. Maintenance
    • Plug-n-Play Quick Connect Cord that Drastically Reduces Maintenance Time
    • Corrosion Resistant Stainless Steel Hardware
    • High Quality, Readily Available, Low Cost Mechanical Seals
    • Huge Offering of Service and Maintenance Kits

Deming 7365N-342-26-10N Demersible Non Clog Pump Specifications

  • VOLTAGE: 3ø, 208-230V, 60Hz
  • HORSEPOWER: 3.0 HP
  • AMP DRAW (full load): 14.9/14.1
  • MOTOR TYPE: Oil Cooled
  • RPM: 1750
  • MAXIMUM HEAD: 40'
  • MAXIMUM CAPACITY: 300 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 3.0"
  • MAXIMUM SOLIDS HANDLING SIZE: 2.5"
  • IMPELLER TYPE: Ductile Iron, 3VRA Vortex
  • BODY CONSTRUCTION: Cast Iron
  • FRAME SIZE: #2
  • POWER CORD SOLD SEPARATELY 125496

Deming 7365N Series Demersible Non Clog Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Limited 24 Month Warranty

Crane Pumps & Systems warrants that products of our manufacture will be free of defects in material and workmanship under normal use and service for twenty-four (24) months after manufacture date, when installed and maintained in accordance with our instructions. This warranty gives you specifi c legal rights, and there may also be other rights which vary from state to state. In the event the product is covered by the Federal Consumer Product Warranties Law (1) the duration of any implied warranties associated with the product by virtue of said law is limited to the same duration as stated herein, (2) this warranty is a LIMITED WARRANTY, and (3) no claims of any nature whatsoever shall be made against us, until the ultimate consumer, his successor, or assigns, notifi es us in writing of the defect, and delivers the product and/or defective part(s) freight prepaid to our factory or nearest authorized service station. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply. THE SOLE AND EXCLUSIVE REMEDY FOR BREACH OF ANY AND ALL WARRANTIES WITH RESPECT TO ANY PRODUCT SHALL BE TO REPLACE OR REPAIR AT OUR ELECTION, F.O.B. POINT OF MANUFACTURE OR AUTHORIZED REPAIR STATION, SUCH PRODUCTS AND/OR PARTS AS PROVEN DEFECTIVE. THERE SHALL BE NO FURTHER LIABILITY, WHETHER BASED ON WARRANTY, NEGLIGENCE OR OTHERWISE. Unless expressly stated otherwise, guarantees in the nature of performance specifi cations furnished in addition to the foregoing material and workmanship warranties on a product manufactured by us, if any, are subject to laboratory tests corrected for fi eld performance. Any additional guarantees, in the nature of performance specifi cations must be in writing and such writing must be signed by our authorized representative. Due to inaccuracies in field testing if a conflict arises between the results of field testing conducted by or for user, and laboratory tests corrected for field performance, the latter shall control. RECOMMENDATIONS FOR SPECIAL APPLICATIONS OR THOSE RESULTING FROM SYSTEMS ANALYSES AND EVALUATIONS WE CONDUCT WILL BE BASED ON OUR BEST AVAILABLE EXPERIENCE AND PUBLISHED INDUSTRY INFORMATION. SUCH RECOMMENDATIONS DO NOT CONSTITUTE A WARRANTY OF SATISFACTORY PERFORMANCE AND NO SUCH WARRANTY IS GIVEN. This warranty shall not apply when damage is caused by (a) improper installation, (b) improper voltage (c) lightning (d) excessive sand or other abrasive material (e) scale or corrosion build-up due to excessive chemical content. Any modification of the original equipment will also void the warranty. We will not be responsible for loss, damage or labor cost due to interruption of service caused by defective parts. Neither will we accept charges incurred by others without our prior written approval. This warranty is void if our inspection reveals the product was used in a manner inconsistent with normal industry practice and/or our specific recommendations. The purchaser is responsible for communication of all necessary information regarding the application and use of the product. UNDER NO CIRCUMSTANCES WILL WE BE RESPONSIBLE FOR ANY OTHER DIRECT OR CONSEQUENTIAL DAMAGES,INCLUDING BUT NOT LIMITED TO TRAVEL EXPENSES, RENTED EQUIPMENT, OUTSIDE CONTRACTOR FEES, UNAUTHORIZED REPAIR SHOP EXPENSES, LOST PROFITS, LOST INCOME, LABOR CHARGES, DELAYS IN PRODUCTION, IDLE PRODUCTION, WHICH DAMAGES ARE CAUSED BY ANY DEFECTS IN MATERIAL AND/OR WORKMANSHIP AND/OR DAMAGE OR DELAYS IN SHIPMENT. THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER EXPRESS OR IMPLIED WARRANTY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. No rights extended under this warranty shall be assigned to any other person, whether by operation of law or otherwise, without our prior written approval
