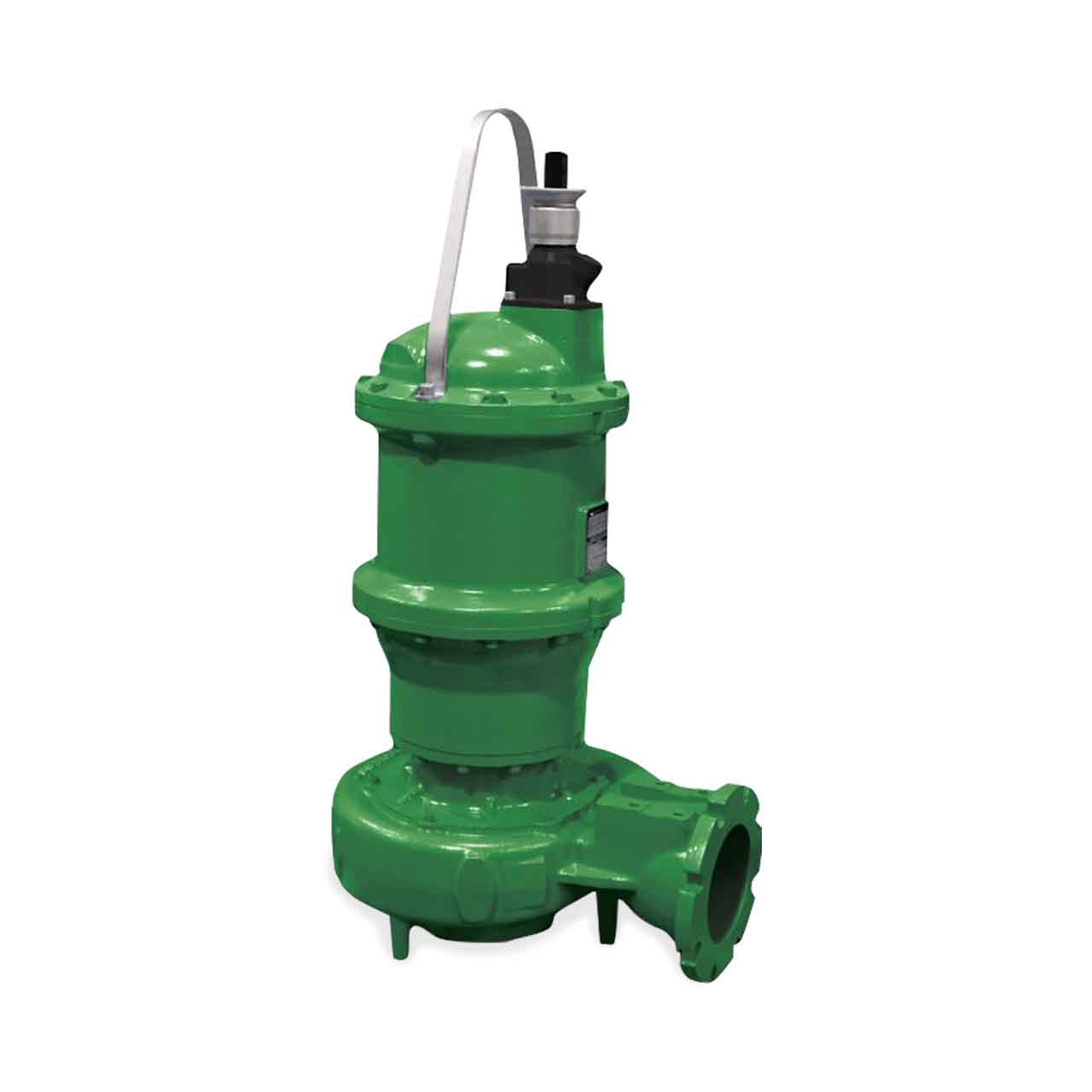

Deming 7365-615-76-30N X-Pruf Demersible Non Clog Pump 20 HP 575V 3PH 6ML Mono Vane

Price: $17,815.20
Quantity:
+ -
Usually ships within 5 weeks
SKU: DEM73656157630N


Shipping Weight:
684.0 LBS
Shipping Dimensions
Length: 27 In
Width: 22 In
Height: 40 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Deming 7365 Series X-Pruf Demersible Non Clog Pump

Deming Demersible Solids Handling Non-Clog Pumps are used in industrial wastewater applications and have a 4" spherical solids handling capability to easily pass the solids encountered in most industrial environments. Deming Demersible flows to over 5,700 GPM and heads in excess of 265 feet. Deming Demersible Series is designed for continuous operation and is made with heavy duty materials of construction for simplified maintenance.

Deming 7365 Series X-Pruf Demersible Non Clog Pump Applications

  • General Drainage
  • Storm Water Run-Off
  • Building Service
  • Power and Utility Plants
  • Polution Control

Deming 7365 Series X-Pruf Demersible Non Clog Pump Features

  • Non Clogging - Demersible 7365 Series Non Clog Pumps Provide Exceptional Clogging Resistance against Solids in the Waste Stream.
    • Solids Handling Capability of up to 4"
    • Available with Vortex Impellers which Provide Best Non Clogging Performance
    • Pump Out Vanes at Backside of Impeller
    • Clog Tested with Solids like Ropes, Rags and Stringy Material
  • High Efficiency - Demersible 7365 Series Non Clog Pumps Provide Unmatched Performance Efficiencies.
    • Available with Mono Vane, Dual Vane & Tri-Vane Impellers that Provide High Hydraulic Efficiencies
    • Proven & Tested Deming Hydraulic Designs
    • Inverter/VFD Compatible Motors for Sustained High Efficiencies
  • Built to Last - Demersible 7365 Series Non Clog Pumps are Built to Last. Demersible Non Clog Pumps Provide Highest Reliability and Trouble Free Operation.
    • Tapered Shaft with Tapered Impeller Bore for Easy Attachment & Vibration Reduction
    • Rugged Cast Iron Construction
    • Heavy Duty Oil Lubricated Bearings
    • Class F Motor Insulation System for Long Winding Life
    • Oil Cooled Motor for Superior Thermal Management
  • Flexibility & Availability - Demersible 7365 Series Pumps are Available:
    • With Dual & Tri Voltage Motors and Separately Sold Cords
    • In Optional Explosion Proof Models for Applications in Class I Division 1 Groups C&D T4 Environments (CSA Certified)
    • Are Available in Industry Best Lead Time of 3 Weeks
  • Simplified Maintenance - Demersible 7365 Series Non Clog Pumps are known for Features that Simplify. Maintenance
    • Plug-n-Play Quick Connect Cord that Drastically Reduces Maintenance Time
    • Corrosion Resistant Stainless Steel Hardware
    • High Quality, Readily Available, Low Cost Mechanical Seals
    • Huge Offering of Service and Maintenance Kits

Deming 7365-615-76-30N X-Pruf Demersible Non Clog Pump Specifications

  • VOLTAGE: 3ø, 575V, 60Hz
  • HORSEPOWER: 20 HP
  • AMP DRAW (full load): 21.5
  • MOTOR TYPE: Oil Cooled
  • RPM: 1750
  • MAXIMUM HEAD: 96'
  • MAXIMUM CAPACITY: 1440 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 6.0"
  • MAXIMUM SOLIDS HANDLING SIZE: 3.0"
  • IMPELLER TYPE: Ductile Iron, 6ML Mono Vane
  • BODY CONSTRUCTION: Cast Iron
  • FRAME SIZE: #3
  • HAZARDOUS DUTY: CSA CLASS I DIV 1 GROUPS C & D
  • POWER CORD SOLD SEPARATELY 125497

Deming 7365 Series X-Pruf Demersible Non Clog Pump Performance Curve
