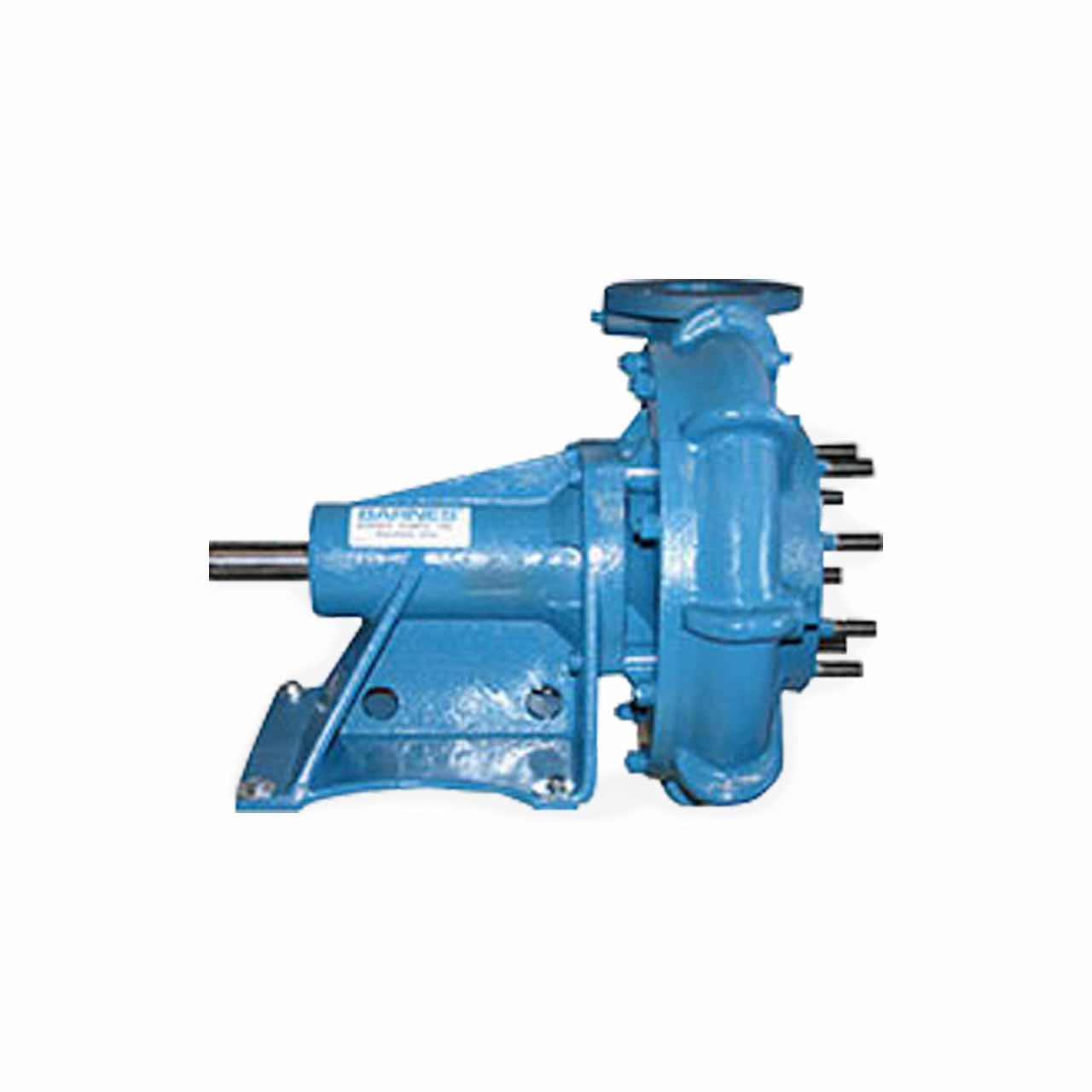

Barnes 2020HCU End Suction Centrifugal Pump Pedestal Mounted

Price: Discontinued
+ -
Discontinued or no longer available.
SKU: BAR029676


Shipping Weight:
74.0 LBS
Shipping Dimensions
Length: 16 In
Width: 12 In
Height: 14 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Discontinued

Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump

Barnes Self-Priming Pumps are designed to meet a broad range of general and special industrial applications. Base mounted pump models are available with motors up to 150 HP, while close-coupled pump models are available from 3 to 25 HP.

Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump Applications

These pumps are suitable for general industrial use such as liquid transfer or as booster pump.

Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump Features and Benefits

  • Cast Iron ASTM, Class 30 Motor w/Air Vent, Vacuum Pressure and Drain Plugs Housing
  • Cast Iron ASTM, Class 30 Pedestal
  • Impeller is 81-3-7-9 Bronze
  • Seal is a Mechanical, Self Lubricating, Rotating Faces - Carbon, Stationary Faces - Ceramic Elastomer - Buna-N, Hardware - 300 Series Stainless.
  • 2.0" 125lb Flange Discharge and 2.0" NPT Suction
  • Discharge can be Placed in 8 Different Locations Depending on Piping Requirements.
  • Temperature Rating: 180°F (82°C), Continuous.

Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump Specifications

  • DISCHARGE SIZE: 2.0" 125lb Flange
  • INLET SIZE: 2.0" NPT
  • MAXIMUM CAPACITY: 160 GPM @ 3500 RPM
  • MAXIMUM HEAD: 272' @ 3500 RPM
  • IMPELLER MATERIAL: 81-3-7-9 Bronze; Enclosed Type, Dynamically Balanced, ISO G6.3
  • BODY CONSTRUCTION: Cast Iron ASTM, Class 30, with Air Vent, Vacuum Pressure and Drain Plugs
  • MAXIMUM LIQUID TEMPERATURE: 180°F (82°C)

Barnes 2020HCU End Suction Centrifugal Pedestal Mounted Pump Performance Curves


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Limited 24 Month Warranty

Crane Pumps & Systems warrants that products of our manufacture will be free of defects in material and workmanship under normal use and service for twenty-four (24) months after manufacture date, when installed and maintained in accordance with our instructions. This warranty gives you specifi c legal rights, and there may also be other rights which vary from state to state. In the event the product is covered by the Federal Consumer Product Warranties Law (1) the duration of any implied warranties associated with the product by virtue of said law is limited to the same duration as stated herein, (2) this warranty is a LIMITED WARRANTY, and (3) no claims of any nature whatsoever shall be made against us, until the ultimate consumer, his successor, or assigns, notifi es us in writing of the defect, and delivers the product and/or defective part(s) freight prepaid to our factory or nearest authorized service station. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply. THE SOLE AND EXCLUSIVE REMEDY FOR BREACH OF ANY AND ALL WARRANTIES WITH RESPECT TO ANY PRODUCT SHALL BE TO REPLACE OR REPAIR AT OUR ELECTION, F.O.B. POINT OF MANUFACTURE OR AUTHORIZED REPAIR STATION, SUCH PRODUCTS AND/OR PARTS AS PROVEN DEFECTIVE. THERE SHALL BE NO FURTHER LIABILITY, WHETHER BASED ON WARRANTY, NEGLIGENCE OR OTHERWISE. Unless expressly stated otherwise, guarantees in the nature of performance specifi cations furnished in addition to the foregoing material and workmanship warranties on a product manufactured by us, if any, are subject to laboratory tests corrected for fi eld performance. Any additional guarantees, in the nature of performance specifi cations must be in writing and such writing must be signed by our authorized representative. Due to inaccuracies in field testing if a conflict arises between the results of field testing conducted by or for user, and laboratory tests corrected for field performance, the latter shall control. RECOMMENDATIONS FOR SPECIAL APPLICATIONS OR THOSE RESULTING FROM SYSTEMS ANALYSES AND EVALUATIONS WE CONDUCT WILL BE BASED ON OUR BEST AVAILABLE EXPERIENCE AND PUBLISHED INDUSTRY INFORMATION. SUCH RECOMMENDATIONS DO NOT CONSTITUTE A WARRANTY OF SATISFACTORY PERFORMANCE AND NO SUCH WARRANTY IS GIVEN. This warranty shall not apply when damage is caused by (a) improper installation, (b) improper voltage (c) lightning (d) excessive sand or other abrasive material (e) scale or corrosion build-up due to excessive chemical content. Any modification of the original equipment will also void the warranty. We will not be responsible for loss, damage or labor cost due to interruption of service caused by defective parts. Neither will we accept charges incurred by others without our prior written approval. This warranty is void if our inspection reveals the product was used in a manner inconsistent with normal industry practice and/or our specific recommendations. The purchaser is responsible for communication of all necessary information regarding the application and use of the product. UNDER NO CIRCUMSTANCES WILL WE BE RESPONSIBLE FOR ANY OTHER DIRECT OR CONSEQUENTIAL DAMAGES,INCLUDING BUT NOT LIMITED TO TRAVEL EXPENSES, RENTED EQUIPMENT, OUTSIDE CONTRACTOR FEES, UNAUTHORIZED REPAIR SHOP EXPENSES, LOST PROFITS, LOST INCOME, LABOR CHARGES, DELAYS IN PRODUCTION, IDLE PRODUCTION, WHICH DAMAGES ARE CAUSED BY ANY DEFECTS IN MATERIAL AND/OR WORKMANSHIP AND/OR DAMAGE OR DELAYS IN SHIPMENT. THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER EXPRESS OR IMPLIED WARRANTY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. No rights extended under this warranty shall be assigned to any other person, whether by operation of law or otherwise, without our prior written approval
