Discontinued

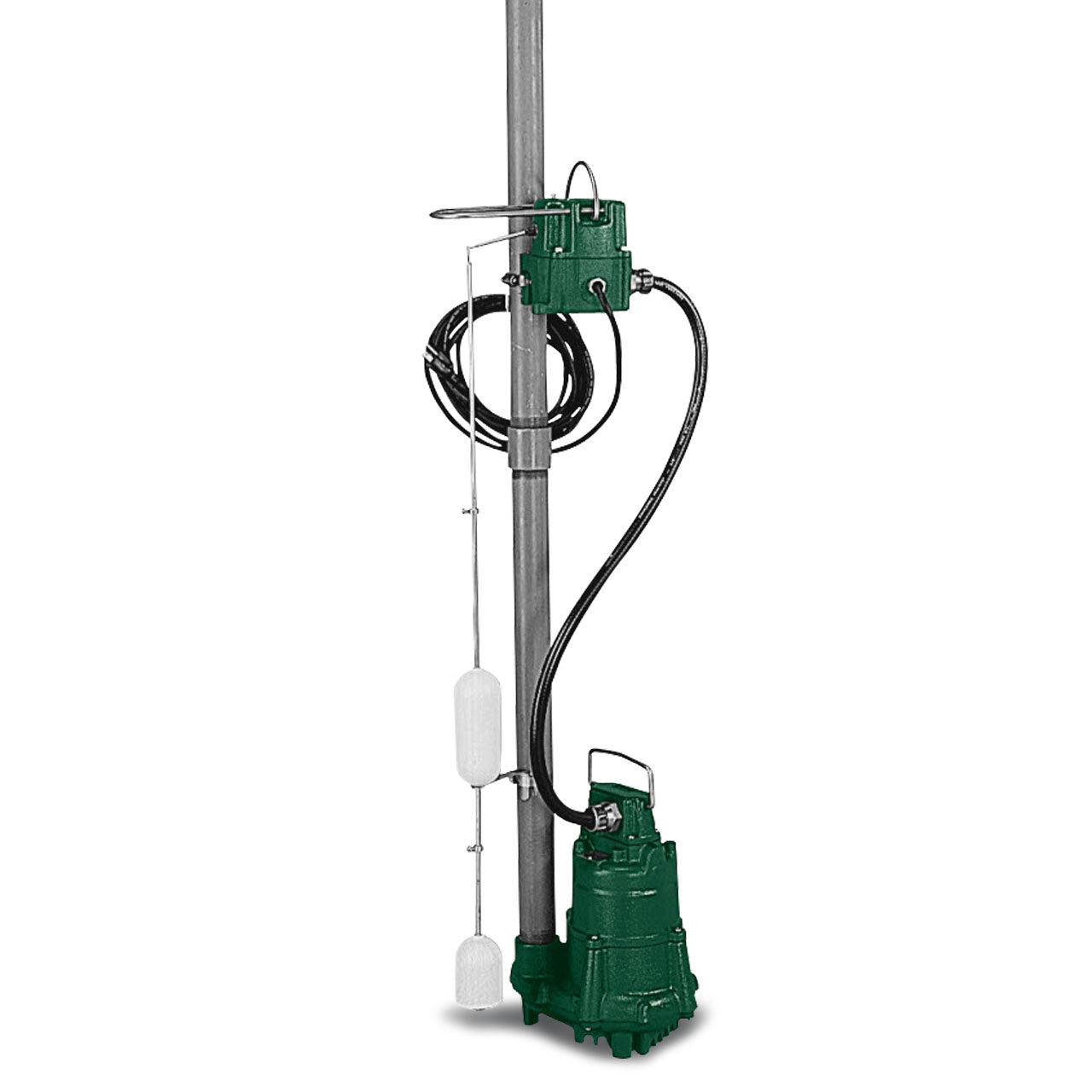

Zoeller Model M3161 High Temperature Submersible Pump Description
This series of submersible pumps is designed for use in residential or
commercial dewatering applications and can be used to transfer groundwater
and wastewater. These durable cast iron pumps include a powder coated epoxy
finish to prevent corrosion, and are designed to meet specifications with
assurance by using high temperature parts rated for intermittent 200° F (93° C)
contact, ensuring a long service life. As with every Zoeller® pump, each one is
100% factory tested to ensure quality and reliability for years of trouble-free
performance! This attention to detail is an inherent feature of every model in this
pump series, making it one of the most reliable in the industry.
Zoeller Model M3161 High Temperature Submersible Pump Features and Benefits
-
A High Temperature Submersible Pump Series with Electrical
Components Meeting the National Electrical Code Requirements for
200° F (93°C) Service
-
Conduit Length is 3 Feet (0.9 m) for Automatic Models
-
High Temperature Thermal Overload Protected
-
All Control Components in Contact with Water are High Temperature
Rated
-
All Models have Stainless Steel Screws, Guards, Handles and Control
Arm and Seal Assemblies
-
Float Operated Mechanical Switch Box Which is Mounted on the
Discharge Pipe Above the Operating Level (switch box is not intended to
come in continuous contact with 200° F [93°C] water)
-
Corrosion-Resistant, Powder Coated Epoxy Finish
Zoeller Model M3161 High Temperature Submersible Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMPS: 15.5
- RPM: 1725 RPM
- MAX HEAD: 105'
- MAX FLOW RATE: 51 GPM
- SWITCH 'ON' LEVEL: Varies"
- SWITCH 'OFF' LEVEL: Varies"
- DISCHARGE SIZE: 1 1/2" Standard, 2" NPT or 3" NPT Available
- SOLIDS HANDLING: 3/4"
- IMPELLER TYPE: Cast Iron, Non-Clogging Vortex
- CORD LENGTH: 20'
- CORD TYPE: 16-3 SOOW cord
- BODY CONSTRUCTION: Cast Iron
- MAXIMUM OPERATING TEMPERATURE: 200°F (93C)
Zoeller Model M3161 Performance Curve
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Zoeller Limited Warranty
Manufacturer warrants, to the purchaser and subsequent owner during the warranty
period, every new product to be free from defects in material and workmanship
under normal use and service, when properly used and maintained, for a period
of one year from date of purchase by the end user, or 18 months from date of
original manufacture of the product, whichever comes first. Parts that fail within
the warranty period, one year from date of purchase by the end user, or 18 months
from the date of original manufacture of the product, whichever comes first, that
inspections determine to be defective in material or workmanship, will be repaired,
replaced or remanufactured at Manufacturer's option, provided however, that by so
doing we will not be obligated to replace an entire assembly, the entire mechanism
or the complete unit. No allowance will be made for shipping charges, damages,
labor or other charges that may occur due to product failure, repair or replacement.
This warranty does not apply to and there shall be no warranty for any material
or product that has been disassembled without prior approval of Manufacturer,
subjected to misuse, misapplication, neglect, alteration, accident or act of God; that
has not been installed, operated or maintained in accordance with Manufacturer's
installation instructions; that has been exposed to outside substances including
but not limited to the following: sand, gravel, cement, mud, tar, hydrocarbons,
hydrocarbon derivatives (oil, gasoline, solvents, etc.), or other abrasive or corrosive
substances, wash towels or feminine sanitary products, etc. in all pumping
applications. The warranty set out in the paragraph above is in lieu of all other warranties expressed or implied; and we do not authorize any representative or
other person to assume for us any other liability in connection with our products.
Contact Manufacturer at, 3649 Cane Run Road, Louisville, Kentucky 40211,
Attention: Customer Service Department to obtain any needed repair or replacement
of part(s) or additional information pertaining to our warranty.
MANUFACTURER EXPRESSLY DISCLAIMS LIABILITY FOR SPECIAL,
CONSEQUENTIAL OR INCIDENTAL DAMAGES OR BREACH OF EXPRESSED
OR IMPLIED WARRANTY; AND ANY IMPLIED WARRANTY OF FITNESS FOR
A PARTICULAR PURPOSE AND OF MERCHANTABILITY SHALL BE LIMITED
TO THE DURATION OF THE EXPRESSED WARRANTY.
Some states do not allow limitations on the duration of an implied warranty, so
the above limitation may not apply to you. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
