  • SJE-Rhombus 20SGMPCNO SignalMaster Control Switch Normally Open 20' Cord - SJE1006044
  • SJE-Rhombus 20SGMPCNO SignalMaster Control Switch Normally Open 20' Cord - SJE1006044
In Stock!

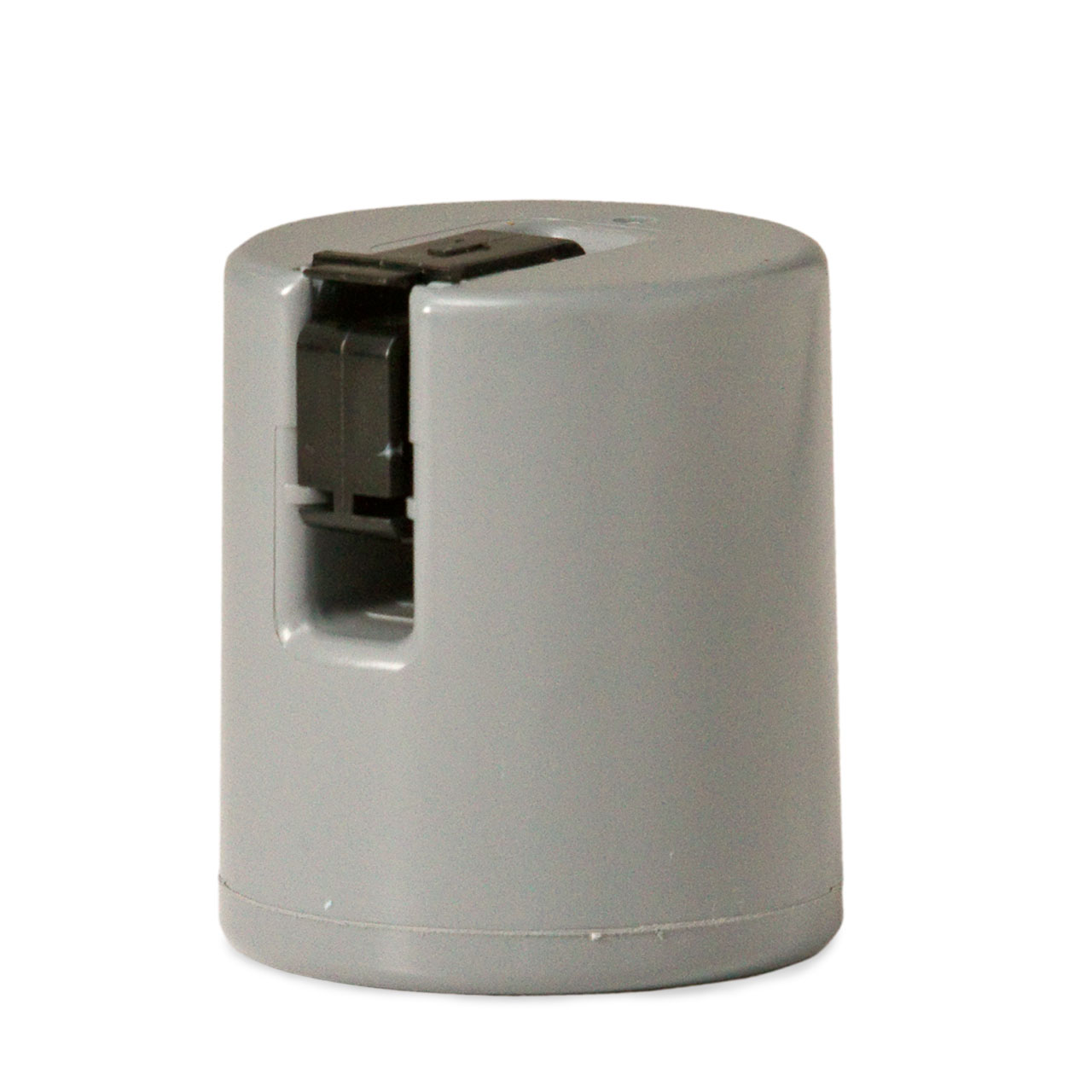

SJE-Rhombus 20SGMPCNO SignalMaster Control Switch Normally Open 20' Cord

Price: $56.70
Quantity:
+ -
Usually ships within 24 hours.
In Stock Quantity: 18
SKU: SJE1006044


Shipping Weight:
2.0 LBS
Shipping Dimensions
Length: 6 In
Width: 6 In
Height: 6 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Mechanically-Activated, Narrow-Angle Control Switch

The SJE SignalMaster® control switch is used to accurately monitor high (normally open) or low (normally closed) liquid levels to activate pump control panels and alarms in water and sewage applications.

Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal. Normally open models have a yellow colored cap for easy identification.

Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal. Normally closed models have a white colored cap for easy identification.This switch is not sensitive to rotation.

SJE-Rhombus SignalMaster® Control Switch Typical Application

  • Mechanically Activated, Narrow-Angle Float Switch Designed to Activate Pump Control Panels and Alarms.

SJE-Rhombus SignalMaster® Control Switch Features

  • Mechanically-Activated, Snap Action Contacts.
  • High Impact, Corrosion Resistant, Polypropylene Float Housing.
  • Not Sensitive to Rotation.
  • Control Differential of 1.5 Inches (4 cm) Above or Below Horizontal.
  • 10 ft Flexible 18 Gauge Cord, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE) Jacket
  • Yellow Colored Cap for Easy Identification of Normally Open Control Switch.
  • White Colored Cap for Easy Identification of Normally Closed Control Switch.
  • Mounting Option: Mounting Clamp for Applications where the Switch can be Attached to a Discharge Pipe or Similiar Mounting Device.
  • UL Listed for use in Water and Sewage.
  • CSA Certified.
  • Five-Year Limited Warranty

SJE-Rhombus SignalMaster® Control Switch Specifications

  • CABLE: Flexible 18 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
  • FLOAT: 2.74" Diameter x 4.83" Long (7.0 x 12.3 cm) High Impact, Corrosion Resistant, Polypropylene Housing for use in Sewage and Water up to 140° F (60° C)
  • MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI (90 kPa)
  • ELECTRICAL: 5 Amp, 125/250 VAC, 50/60 Hz

NOTE: This switch is not recommended for controlling:

  • Electric Loads Less than 100 Milliamps, 12 VAC
  • Non-Arcing Electric Loads

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SJE Rhombus Limited Warranty Policy

Five-Year Limited Warranty Policy We Stand Behind Our Products!

Effective for products manufactured after January 1, 2014

SJE-Rhombus warrants to the original consumer that this product shall be free of manufacturing defects for five years* after the date of consumer purchase. During that time period and subject to the conditions set forth below, SJE-Rhombus will repair or replace, for the original consumer, any component which proves to be defective due to defective materials or workmanship of SJE-Rhombus.

THE FIVE-YEAR LIMITED WARRANTY DOES NOT APPLY TO THE MOTOR START KIT COMPONENTS. SJE-RHOMBUS WILL WARRANTY MOTOR START KIT COMPONENTS, SUPPLIED BY SJE-RHOMBUS FOR ONE YEAR. SJE-RHOMBUS MAKES NO WARRANTIES OF ANY TYPE WITH RESPECT TO MOTOR START KITS SUPPLIED BY A CUSTOMER.

SJE-Rhombus warrants to the original consumer that this product shall be free of manufacturing defects for five years* after the date of consumer purchase. During that time period and subject to the conditions set forth below, SJE-Rhombus will repair or replace, for the original consumer, any component which proves to be defective due to defective materials or workmanship of SJE-Rhombus.

THE FIVE-YEAR LIMITED WARRANTY DOES NOT APPLY TO THE MOTOR START KIT COMPONENTS. SJE-RHOMBUS WILL WARRANTY MOTOR START KIT COMPONENTS, SUPPLIED BY SJE-RHOMBUS FOR ONE YEAR. SJE-RHOMBUS MAKES NO WARRANTIES OF ANY TYPE WITH RESPECT TO MOTOR START KITS SUPPLIED BY A CUSTOMER.

ELECTRICAL WIRING AND SERVICING OF THIS PRODUCT MUST BE PERFORMED BY A LICENSED ELECTRICIAN.

This warranty does not apply to: (a) damage due to lightning or conditions beyond the control of SJE-Rhombus; (b) defects or malfunctions resulting from units not installed, operated, or maintained in accordance with instructions provided, applicable local codes, ordinances, or accepted trade practices; (c) failures resulting from abuse, misuse, accident, or negligence; or (d) units repaired and/or modified without prior authorization from SJE-Rhombus.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TO OBTAIN WARRANTY SERVICE: The consumer shall assume all responsibility and expense for removal, reinstallation, and freight. Any item to be repaired or replaced under this warranty must be returned to SJE-Rhombus, or such place as designated by SJE-Rhombus. Contact customer service at 1-888-DIAL-SJE (1-888-342-5753) for a Return Materials Authorization number (RMA) on any product being returned for a warranty claim.

ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS ARE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. SJE-RHOMBUS SHALL NOT, IN ANY MATTER, BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES AS A RESULT OF A BREACH OF THIS WRITTEN WARRANTY OR ANY IMPLIED WARRANTY.

*Build-A-Panel™ Plus Control Panels and Engineered Custom panels carry a two-year limited warranty (or as quoted). The pressure transducer included with VARIOspeed® products carries a one-year limited warranty.
