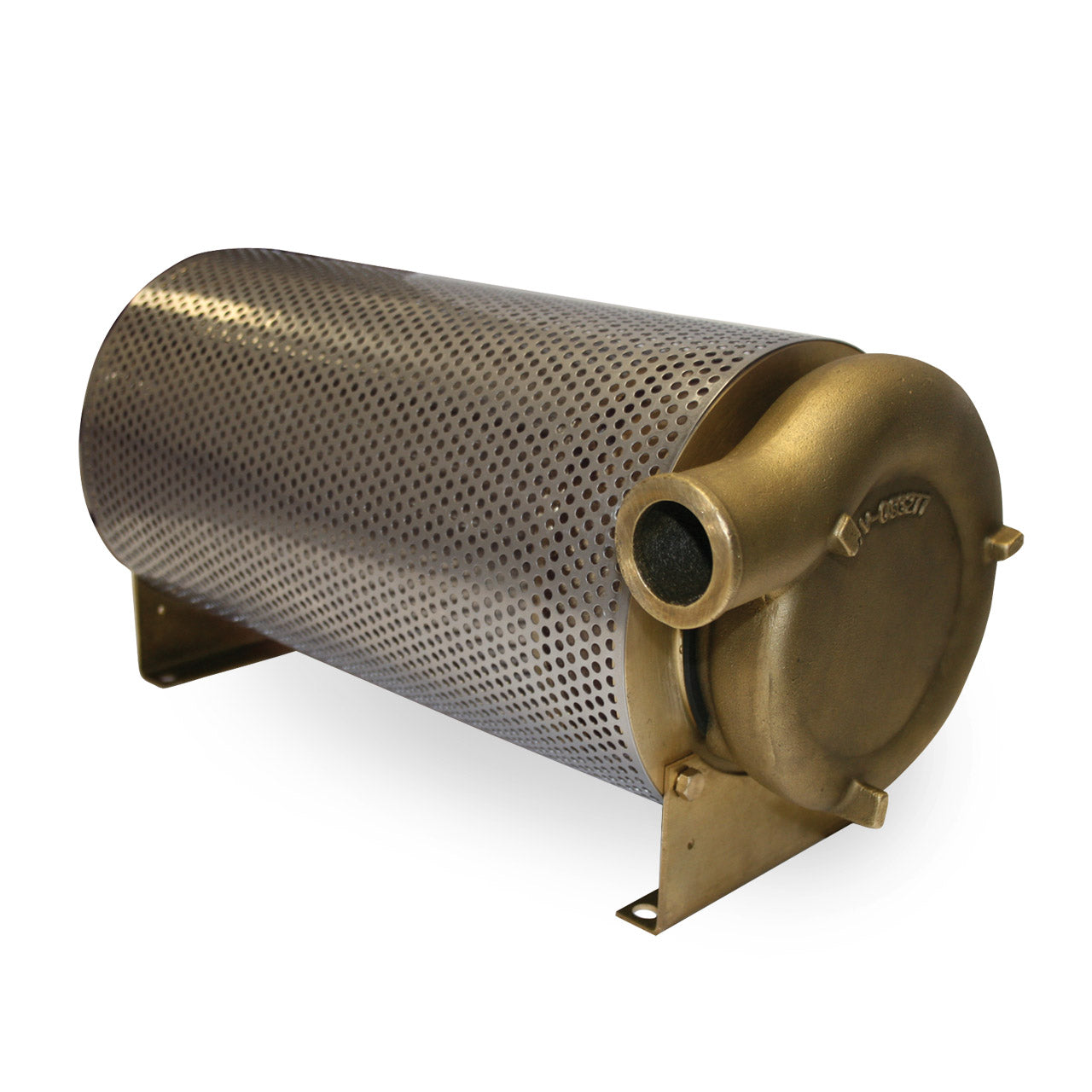

Power-Flo PFU71 Submersible Fountain Pump 0.75 HP 115V 1PH Manual 12' Cord

Price: $2,582.55
Quantity:
+ -
Usually ships within 3 weeks
SKU: PFPFU71


Shipping Weight:
54.0 LBS
Shipping Dimensions
Length: 10 In
Width: 17 In
Height: 11 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo Submersible Fountain Pump Description

The Power-Flo PFU102 Submersible Pump is used in decorative water displays.

Power-Flo Submersible Fountain Pump Typical Application

  • Decorative Water Features
  • Designed to Meet The Demands of Water Feature Applications.

Power-Flo Submersible Fountain Pump Features

  • DISCHARGE: 1-3/4" Hose Connection, 90° Rotation and 1" NPT Female
  • LIQUID TEMPERATURE: 145°F Continuous
  • VOLUTE: Brass
  • INTERMEDIATE: Brass
  • HOUSING END PIECE: Brass
  • HOUSING TUBE: 304 Stainless Steel
  • SCREEN: 304 Stainless Steel
  • PUMP SUPPORTS: 304 Stainless Steel
  • IMPELLER: 1/3 & 1/2HP - Four Vane, Open, Brass & 3/4 & 1 HP - Six Vane Open, Brass
  • SHAFT: 416 Stainless Steel
  • O-RINGS: Buna-N
  • HARDWARE: 300 Series Stainless Steel
  • SEAL: Single Mechanical, Carbon/Ceramic/Buna_N
  • POWER CORD: 12 Ft., SOW, 16/3, 0.395” Diameter
  • BEARING - MOTOR END: Single Row Ball, Oil Lubricated
  • BEARING - PUMP END: Single Row Ball, Oil Lubricated
  • MOTOR: Class H Insulation, NEMA B Design, Oil Filled, Squirrel Cage Induction, Single Phase, Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
  • WARRANTY: 1 Year

Power-Flo PFU71 Technical Details

  • VOLTAGE: 1ø, 115V, 60Hz
  • HORSEPOWER: 0.75 HP
  • AMP DRAW (full load): 12.0
  • MOTOR TYPE: Class H insulation, NEMA B
  • RPM: 3450
  • MAXIMUM HEAD: 50'
  • MAXIMUM CAPACITY: 95 GPM
  • DISCHARGE PIPE SIZE: 1.0" NPT Female
  • IMPELLER TYPE: 6-Vane Open, Brass
  • CORD LENGTH: 12'
  • CORD SIZE: 16/3 SOW
  • BODY CONSTRUCTION: 304 Stainless Steel
  • MAXIMUM LIQUID TEMPERATURE: 145°F (60°C)
  • DUTY RATING: Continuous

Power-Flo Submersible Fountain Pump Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo Warranty

Sump/Effluent & Dewatering Pumps - 2 Years Limited Warranty

Manufacturer warrants, to the immediate purchaser and subsequent initial owner during the warranty period,every new pump to be free from defects in material and workmanship under normal use and service, when properly used and maintained, for a period of eighteen (18) months from date of manufacture or twelve (12) months from date of installation (which ever comes first). Failure due to wear due to excessive abrasives is not covered. The initial owner is the purchaser who first uses the pump after its initial installation, or for non-permanent installation,the first owner who uses the pump. The date of installation shall be determined by a dated sales receipt noting the model and serial number of the pump. The dated sales receipt must accompany the returned pump. Product will be repaired, replaced or re-manufactured at Manufacturer’s option. No allowance will be made for shipping charges,damages, labor or other charges that may occur due to product failure, repair or replacement. This warranty does not apply to and there shall be no warranty for any material or product that has been disassembled without prior approval of Manufacturer, subjected to misuse, misapplication, neglect, alteration, accident or act of God; that has not been installed, operated or maintained in accordance with Manufacturer’s installation instructions; that has been exposed to outside substances including but not limited to the following: sand, gravel, cement, mud, tar,hydrocarbons, hydrocarbon derivatives (oil, gasoline, solvents, etc.), or other abrasive or corrosive substances, wash towels or feminine sanitary products, etc. in all pumping applications. The warranty set out in the paragraph above is in lieu of all other warranties expressed or implied; and we do not authorize any representative or other person to assume for us any other liability in connection with our products. Contact Manufacturer at: 1-877-24PUMPS or www.powerfl opumps.com, Attention: Customer Service Department, to obtain any needed repair or replacement of part(s) or additional information pertaining to our warranty.MANUFACTURER EXPRESSLY DISCLAIMS LIABILITY FOR SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES OR BREACH OF EXPRESSED OR IMPLIED WARRANTY; AND ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND OF MERCHANTABILITY SHALL BE LIMITED TO THE DURATION OF THE EXPRESSED WARRANTY. Some states do not allow limitations on the duration of an implied warranty, so the above limitation may not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
