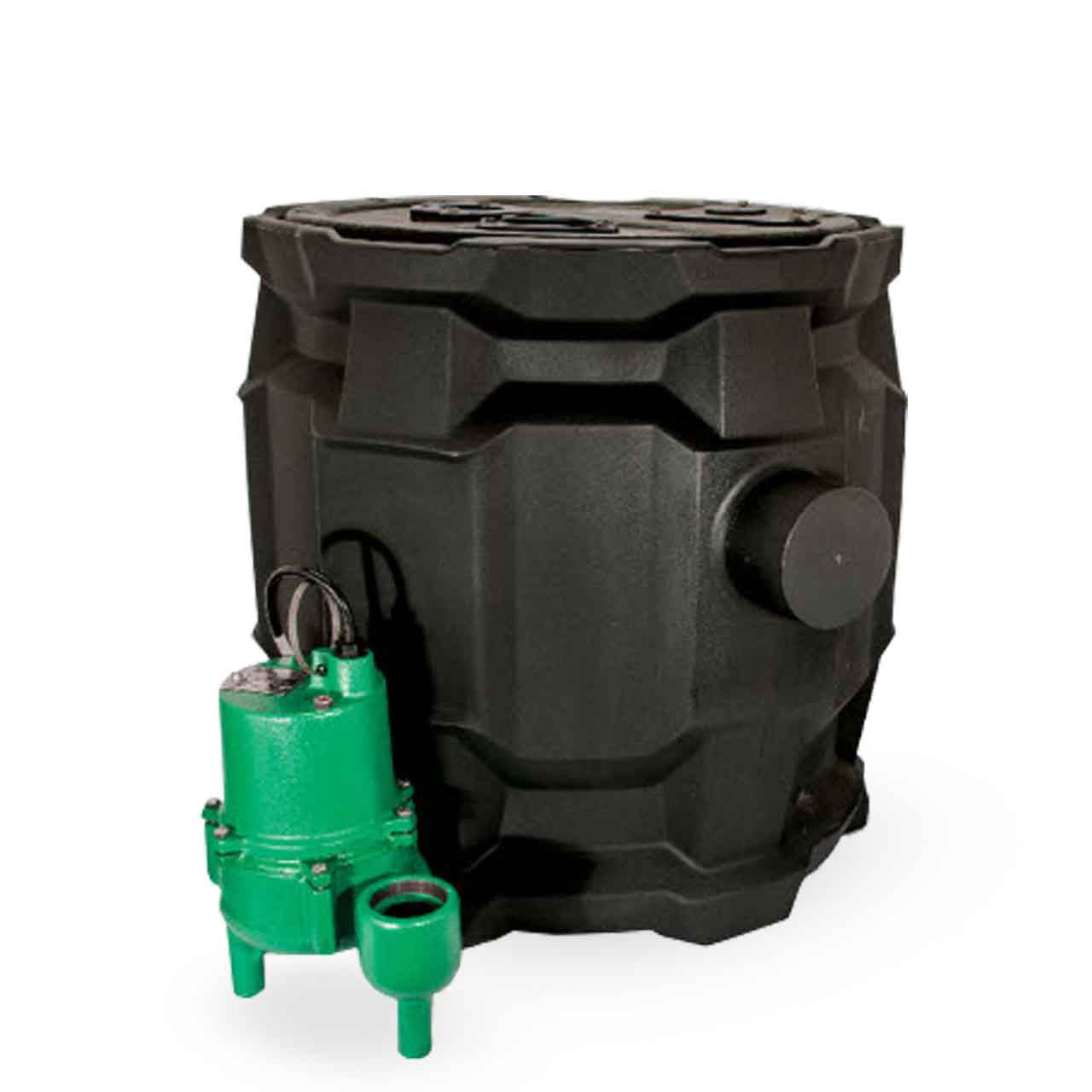

Myers SB24SRM Packaged Sewage System 0.4 HP 115V 20' Cord

Price: $931.14
Quantity:
+ -
Usually ships within 2 weeks
SKU: MYRSB24SRM


Shipping Weight:
47.0 LBS
Shipping Dimensions
Length: 24 In
Width: 24 In
Height: 24 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Myers 24" X 24" Sewage Basin Package Description

The Myers 24" X 24" sewage basin system is designed to be installed in a basement floor to collect sewage or effluent water from toilet, washer, dishwasher or a sink so that it can be pumped away with a sump pump or sewage pump.

Myers 24" X 24" Sewage Basin Package Typical Applications

Residential Sewage Systems Pumping to Septic or Municipal Sewer Systems

Myers 24" X 24" Sewage Basin Package Features

  • Pre-Assembled From Factory: For Quick and Easy Installation.
  • Cast Iron Sewage Pump: For High Performance.
  • Robust Thermoplastic Structure: For Superior Durability.
  • Specially Designed Bottom Grooves: For Easy Leveling in Rough Soil.
  • Molded Torque Stops: Keep Pump in Place.
  • 38.5 Gallon Capacity: For Longer Pump in Cycles Prolonging the Pump Life.
  • 5 Additional Flats: For Adding or Changing Inlet Pipe Location.

Myers SB24SRM Sewage Pump Specifications

  • VOLTAGE: 1ø, 115V, 60 Hz
  • HORSEPOWER: 0.4 HP
  • AMP DRAW (full load): 13.0
  • MOTOR TYPE: Shaded Pole
  • MAXIMUM HEAD: up to 18'
  • MAXIMUM CAPACITY: up to 115 GPM
  • SWITCH TYPE: Tethered Automatic
  • SWITCH 'ON' LEVEL: 12-1/2”
  • SWITCH 'OFF' LEVEL: 6-1/2”
  • DISCHARGE PIPE SIZE: 2.0" NPT
  • MAXIMUM SOLIDS HANDLING SIZE: 2.0"
  • IMPELLER TYPE: Recessed Thermoplastic
  • CORD LENGTH: 20'
  • BODY CONSTRUCTION: Pump: Cast Iron / Basin: Polyethylene
  • MAXIMUM LIQUID TEMPERATURE: 140°F

Myers 24" X 24" Sewage Basin Package Performance Data


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

MYERS LIMITED WARRANTY

Myers® warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below

ProductWarranty Period whichever occurs first:
Jet pumps, small centrifugal pumps, submersible pumps and related
accessories
12 months from date of original installation, or 18 months from date of manufacture
Fibrewound Tanks5 years from date of original installation
Fibrewound Tanks5 years from date of original installation
Sump/Sewage/Effluent Products12 months from date of original installation, or 36 months from date of manufacture
Battery Backup Units
MBSP-2, MBSP-2C
MBSP-3, MBSP-3C
12 months from date of original installation, or 18 months from date of manufacture
24 months from date of original installation, or 30 months from date of manufacture
Wastewater Solids Handling Pumps12 months from date of shipment from factory or 18 months from date of manufacture

Our warranty applies only where such products are used in compliance with the requirements of the applicable product catalog and/or manuals. For additional information, please refer to the applicable standard limited warranty featured in the product manual.

Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.

Your only remedy, and MYERS’s only duty, is that MYERS repair or replace defective products (at MYERS’s choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.

MYERS SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.

THE FOREGOING LIMITED WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING LIMITED WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION PROVIDED HEREIN.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and You may also have other rights which vary from state to state.

This Limited Warranty is effective April 1, 2014 and replaces all undated warranties and warranties dated before April 1, 2014.
