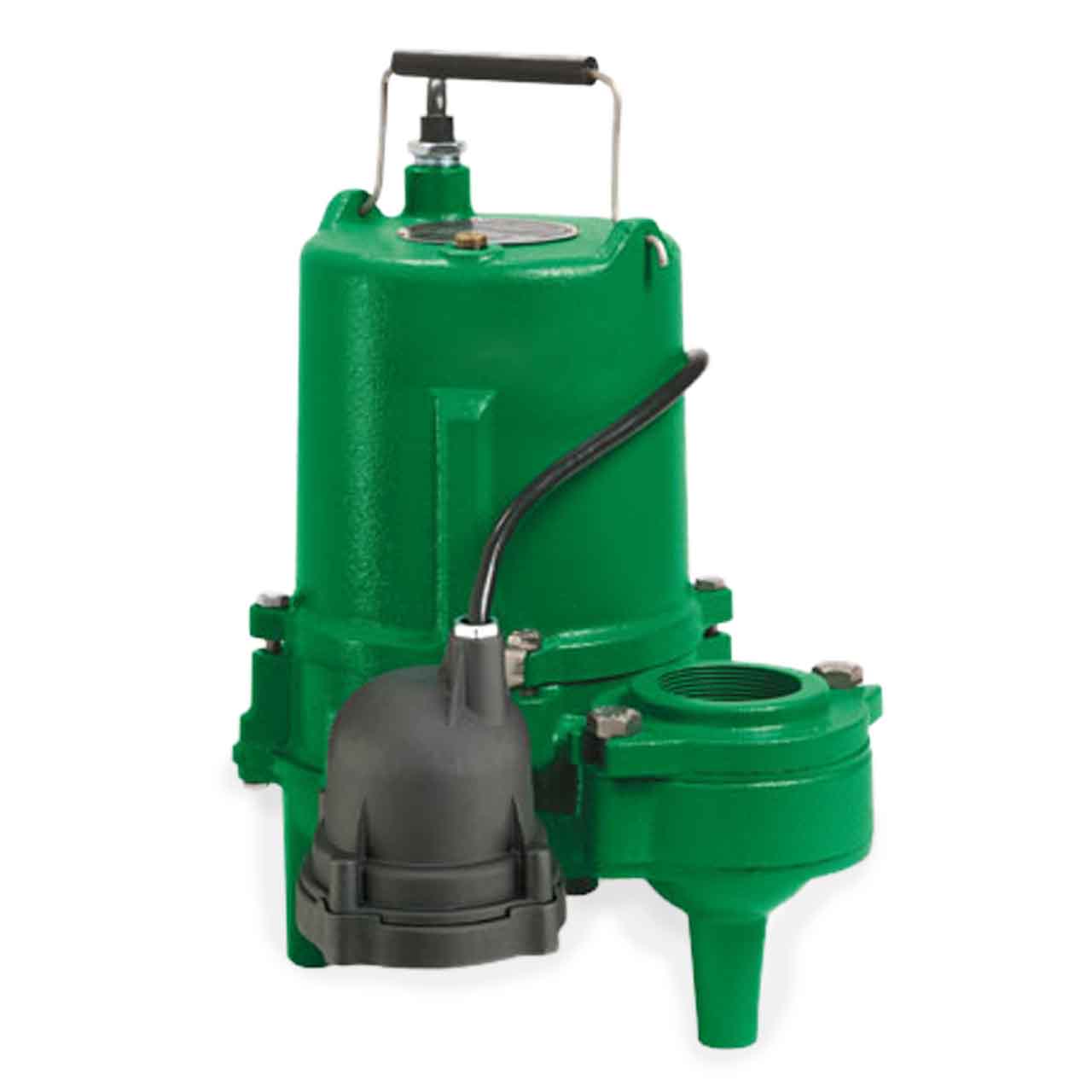

Myers MSP50A2 Submersible Sewage Pump 0.5 HP 230V 1PH Automatic 20' Cord

Price: $1,461.60
Quantity:
+ -
Usually ships within 2 weeks
SKU: MYR28217D003


Shipping Weight:
64.0 LBS
Shipping Dimensions
Length: 13 In
Width: 12 In
Height: 17 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Myers MSP50 Submersible Sewage Pump Description

The Myers MSP50 Submersible Sewage Pump is specifically designed to meet the demands of handling wastewater and sewage in residential and commercial building applications. The 2" NPT discharge pump (3" discharge optional) is available with a powerful 1/2 horsepower motor, in both automatic and manual configurations and can handle capacities up to 150 gallons per minute and heads up to 29 feet.

Myers MSP50 Submersible Sewage Pump Typical Application

  • Commercial Sewage
  • Residential Sewage
  • High-Capacity Sump
  • Septic Tank Effluent

Myers MSP50 Submersible Sewage Pump Features

  • Water-Resistant Power Cord with Molded Plug is Available in 10 or 20 Foot Lengths and is Easily Field Serviceable.
  • Oil-Filled Motor Provides Superior Cooling and Permanent Lubrication of Bearings MInimizing Maintenance and Extending Service Life.
  • Powerful 1/2 HP Motor Provides Cool and Quiet Operation. Motor Windings Contain Automatic Thermal Overload Protection.
  • The High-Capacity, Non-Clog, Cast Iron Impeller, Which is Threaded to a Nickel Plated Steel Shaft, Efficiently Handles up to 1-1/2" Spherical Solids. Pump-Out Vanes on Back of Impeller Prevent Stringy Materials from Binding Impeller or Shaft.
  • Upper Radial and Lower Thrust Bearings are Heavy-Duty, Single-Row Ball Bearings that are Permanently Lubricated for Service-Free Life.
  • Heavy-Duty, Cast Iron Construction Provides Long Life and Assists in Heat Dissipation for Cooler Motor Operation.
  • Precision, Mechanical Shaft Seal is Extensively-Lapped, Carbon Ceramic-Faced for a Long Leakproof Life.
  • Bottom Inlet has no Screen to Become Clogged, Providing Optimum Pump Performance and Minimal Maintenance.
  • Discharge is a Standard 2" NPT (3" is optional)
  • Includes "Piggyback" Diaphragm Switch

Myers MSP50A2 Submersible Sewage Pump Technical Details

  • VOLTAGE: 1ø, 230V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 6.0
  • MOTOR TYPE: Split-Phase
  • RPM: 1750
  • MAXIMUM HEAD: up to 28'
  • MAXIMUM CAPACITY: up to 140 GPM
  • SWITCH TYPE: Diaphragm Switch w/ Piggyback Plug
  • DISCHARGE PIPE SIZE: 2.0" NPT
  • MAXIMUM SOLIDS HANDLING SIZE: 1-1/2"
  • IMPELLER TYPE: Cast Iron, Non-Clogging
  • CORD LENGTH: 20'
  • CORD SIZE: 16/3; Type: STWA
  • BODY CONSTRUCTION: Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 104°F (40C)

Myers MSP50 Submersible Sewage Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

MYERS LIMITED WARRANTY

Myers® warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below

ProductWarranty Period whichever occurs first:
Jet pumps, small centrifugal pumps, submersible pumps and related
accessories
12 months from date of original installation, or 18 months from date of manufacture
Fibrewound Tanks5 years from date of original installation
Fibrewound Tanks5 years from date of original installation
Sump/Sewage/Effluent Products12 months from date of original installation, or 36 months from date of manufacture
Battery Backup Units
MBSP-2, MBSP-2C
MBSP-3, MBSP-3C
12 months from date of original installation, or 18 months from date of manufacture
24 months from date of original installation, or 30 months from date of manufacture
Wastewater Solids Handling Pumps12 months from date of shipment from factory or 18 months from date of manufacture

Our warranty applies only where such products are used in compliance with the requirements of the applicable product catalog and/or manuals. For additional information, please refer to the applicable standard limited warranty featured in the product manual.

Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.

Your only remedy, and MYERS’s only duty, is that MYERS repair or replace defective products (at MYERS’s choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.

MYERS SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.

THE FOREGOING LIMITED WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING LIMITED WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION PROVIDED HEREIN.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and You may also have other rights which vary from state to state.

This Limited Warranty is effective April 1, 2014 and replaces all undated warranties and warranties dated before April 1, 2014.
