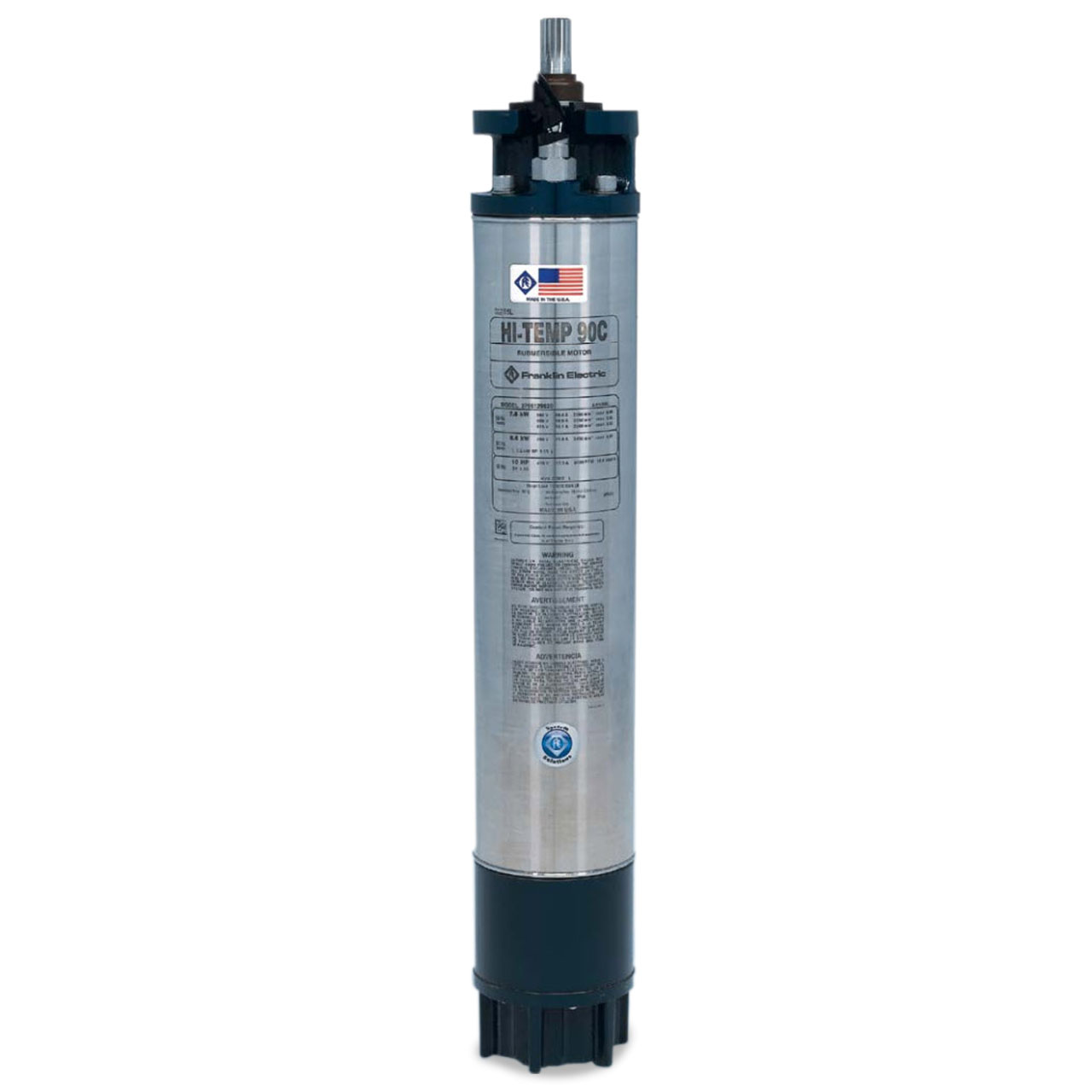

Franklin Electric 2766270103 Hi-Temp 90C Motor 6" 40-HP 575-Volt 60-Hz Three-Phase 3-Wire

Price: $16,733.00
Quantity:
+ -
Usually ships within 1 week
SKU: FEC2766270103


Shipping Weight:
330.0 LBS
Shipping Dimensions
Length: 8 In
Width: 11 In
Height: 71.75 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric™

Franklin Electric 6" Submersible Motors

Some pumping applications require more - and Franklin's Hi-Temp Motor line delivers just that. The Hi-Temp motor was designed and built in response to many requests for a motor that operates dependably in wells with high temperatures and/or low flow conditions.

The 6-inch Hi-Temp 90C motor utilizes a new, premium encapsulation process and new water soluble coolant to allow continuous operation in water temperatures of up to 90ºC. In addition , this design is capable of handling thrust loads 25% higher than a standard motor without using oil. Franklin's Hi-Temp 90C is the right choice for your demanding, high temperature well applications.

Franklin Electric 6" Submersible Motors Features

  • Up to 194 °F (90 °C) Ambient Temperature.
  • 100% Increase in Upthrust Capability at 30°C
  • 25% Increase in Downthrust Capability at 30°C
  • Wet Well, Reservoir, Low Flow Approved in 12” Diameter or Larger Wells with Ambient Water up to 87°F (30°C)
  • High Temperature Leads
  • Hermetically Sealed Stator
  • Innovative High Temperature Winding Encapsulation System
  • FES92 Exclusive Water Soluble, High Temperature Bearing Lubrication
  • Double-Flange NEMA Mounting for Ease of Handling and Pump Mounting
  • Stainless Steel Splined Shaft for Maximum Shaft/Coupling Contact
  • Full 3450 RPM 60Hz Design Point for Superior Pump Performance
  • Sand Fighter™ Sealing System
  • Franklin Electric’s Exclusive Water-Bloc™ Lead Connection
  • 316 SS and Wye-Delta - Consult Factory

Franklin Electric 6" Submersible Motor Specifications

  • BODY CONSTRUCTION: 300 Series Stainless Steel
  • HORSEPOWER: 40 HP
  • VOLTAGE: 3ø, 575V
  • RPM: 3450
  • SERVICE FACTOR: 1.15
  • DOWNWARD THRUST (lbs): 10,000 lbs
  • MAX AMBIENT TEMPERATURE: 86°F/30°C
  • DUTY RATING: Continuous
  • FULL LOAD AMPS: 45.2
  • LEAD: 3-wire, XPLE

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Franklin Electric Warranty

Note: Franklin Electric does not offer warranty for products sold over the internet. This warranty coverage is provided by R.C. Worst & Company Inc.

STANDARD LIMITED WARRANTY R.C. Worst & Company Inc warrants its products against defects in material and workmanship for a period of time defined below depending on the warranty purchased at the time of ordering product. Warranty starts from the date of shipment from R.C. Worst & Company Inc – provided that such products are used in compliance with the requirements of the Franklin Electric catalog and technical manuals for use in pumping water. Product warranties must be purchased at the time of purchase and will not be available for purchase after the product has shipped.

Pump Products

4" Standard Capacity Pumps/Pump Ends

Up to 60 months

4" High Capacity Pump Ends

Up to 60 months

SubDrive QuickPAK Systems

Up to 24 months

Inline Constant Pressure Systems

Up to 24 months

6" High Capacity Pump Ends

Up to 24 months

Sub Turbines and SR Series

Up to 24 months

Jet Pumps

Up to 24 months

End Suction Centrifugals up to 2 hp

Up to 24 months

Motors, Drives, and Controls


up to 1.5 hp

2 to 5 hp

7.5 hp

10 hp

15 hp

20 to 200 hp

4" Motors

60 months*

60 months*

60 months*

60 months*

36 months*


Single-Phase Control Boxes

24 months*

24 months*

24 months*

24 months*

24 months*


SubDrive/MonoDrive/P-Drive

24 months*

24 months*

24 months*

24 months*

24 months*

24 months*

Single-Phase Protection

24 months*

24 months*





6" Three-Phase Motors w/ Franklin Electric Control


36 months*

36 months*

36 months*

36 months*

36 months*

8" Motors w/ Franklin Electric Control






36 months*

Three-Phase Panels


36 months*

36 months*

36 months*

36 months*

36 months*

Three-Phase Protection


36 months*

36 months*

36 months*

36 months*

36 months*


*Maximum warranty period offered for purchase with product

During the warranty period and subject to the conditions set forth, R.C. Worst & Company Inc, at its discretion, will repair or replace to the original user, the parts that prove defective in materials and workmanship.

Start-up reports and electrical schematics may be required to support warranty claims.

Warranty is effective only if authorized control panels are used. Under no circumstance will R.C. Worst & Company Inc be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from R.C. Worst & Company Inc service facility.

This limited warranty will not apply: (a) to defects or malfunctions resulting from failure to properly install, operate or maintain the unit in accordance with the printed instructions provided; (b) to failures resulting from abuse, accident or negligence; (c) to normal maintenance services and parts used in connection with such service; (d) to units that are not installed in accordance with applicable local codes, ordinances and good trade practices; (e) if the unit is moved from its original installation location; (f) if unit is used for purposes other than for what it is designed and manufactured; (g) to any unit that has been repaired or altered by anyone other than R.C. Worst & Company Inc or an authorized R.C. Worst & Company Inc service provider; (h) to any unit that has been repaired using non factory specified/ OEM parts.

Warranty Exclusions: R.C. Worst & Company Inc MAKES NO EXPRESS OR IMPLIED WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. R.C. Worst & Company Inc SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE.

Liability Limitation: IN NO EVENT SHALL R.C. Worst & Company Inc BE LIABLE OR RESPONSIBLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES RESULTING FROM OR RELATED IN ANY MANNER TO ANY R.C. Worst & Company Inc PRODUCT OR PARTS THEREOF. PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY RESULT FROM IMPROPER INSTALLATION. R.C. Worst & Company Inc DISCLAIMS ALL LIABILITY, INCLUDING LIABILITY UNDER THIS WARRANTY, FOR IMPROPER INSTALLATION. R.C. Worst & Company Inc RECOMMENDS INSTALLATION BY PROFESSIONALS.

Some states do not permit some or all of the above warranty limitations or the exclusion or limitation of incidental or consequential damages and therefore such limitations may not apply to you. No warranties or representations at any time made by any representatives of R.C. Worst & Company Inc shall vary or expand the provision hereof.
