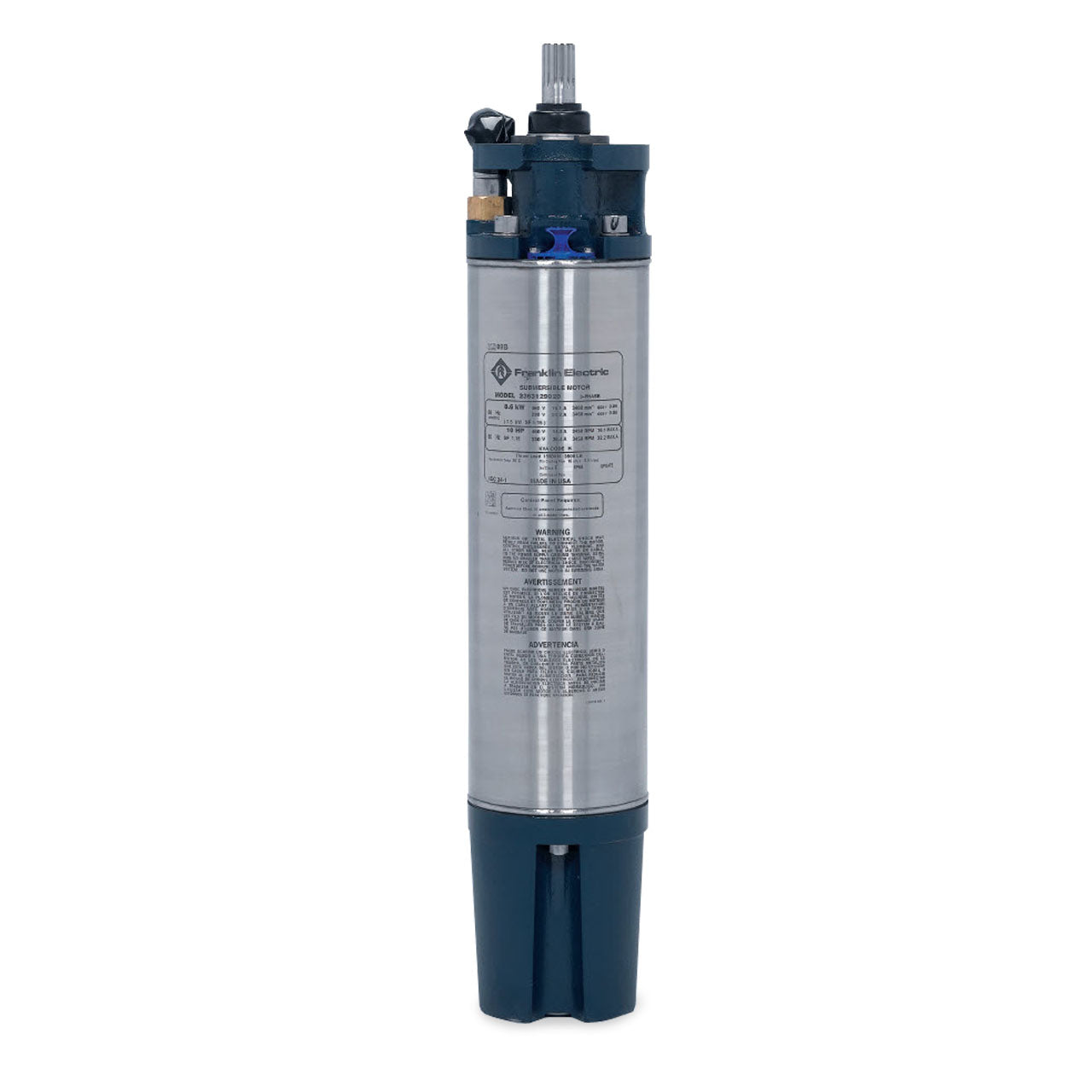

Franklin Electric 2363158120 Volt-X Sand Fighter Motor w/Subtrol 6" 25-HP 230/460-Volt 60-Hz Three-Phase 3-Wire

Price: $6,598.00
Quantity:
+ -
Usually ships within 24 hours.
In Stock Quantity: 1
SKU: FEC2363158120
Warranty:


Update price


Shipping Weight:
156.0 LBS
Shipping Dimensions
Length: 8 In
Width: 11 In
Height: 42.25 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric™

Franklin Electric 6" Volt-X Submersible Motors

Franklin’s 6-inch submersible motors are typically used in large, demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last and come in a variety of construction options.

6-inch Volt-X motors are built with a unique dual voltage feature offering power supply flexibility. The motors utilize an innovative voltage change device that allows the motor to be connected for operation in either 230 V or 460 V, three-phase, 60 Hz power supplies. The voltage exchange device has been meticulously developed for ease of removal and a watertight seal every time.

Franklin Electric 6" Submersible Motor Application Data

6-inch Volt-X motors are built with a unique dual-voltage feature offering power supply flexibility.

Franklin Electric 6" Submersible Motors Feature

  • New Jam-Nut Style VCD Plug Device
  • Maximum Temperature Winding Wire NEMA Class 200
  • Anti-Track Self-Healing Resin System
  • Hermetically-Sealed Windings
  • Removable Water-Bloc™ Lead
  • Double Flange Design
  • Stainless Steel Splined Shaft
  • Kingsbury-Type Water Lubricated Thrust Bearing
  • Pressure-Equalizing Diaphragm
  • Sand Slinger
  • 3-Lead Configuration
  • Copper Bar Rotor
  • Full 3450 RPM Design Point
  • Filter Check Valve
  • Sand Fighter™ Models Available for Sandy Wells

Franklin Electric 6" Volt-X Submersible Motor Specifications

  • BODY CONSTRUCTION: 304 Stainless Steel
  • HORSEPOWER: 25 HP
  • VOLTAGE: 3ø, 230/460V
  • RPM: 3450
  • SERVICE FACTOR: 1.15
  • DOWNWARD THRUST (lbs): 3500 lbs
  • MAX AMBIENT TEMPERATURE: 86°F/30°C
  • DUTY RATING: Continuous
  • LEAD: 3-wire, XPLE

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Franklin Electric Warranty

Note: Franklin Electric does not offer warranty for products sold over the internet. This warranty coverage is provided by R.C. Worst & Company Inc.

STANDARD LIMITED WARRANTY R.C. Worst & Company Inc warrants its products against defects in material and workmanship for a period of time defined below depending on the warranty purchased at the time of ordering product. Warranty starts from the date of shipment from R.C. Worst & Company Inc – provided that such products are used in compliance with the requirements of the Franklin Electric catalog and technical manuals for use in pumping water. Product warranties must be purchased at the time of purchase and will not be available for purchase after the product has shipped.

Pump Products

4" Standard Capacity Pumps/Pump Ends

Up to 60 months

4" High Capacity Pump Ends

Up to 60 months

SubDrive QuickPAK Systems

Up to 24 months

Inline Constant Pressure Systems

Up to 24 months

6" High Capacity Pump Ends

Up to 24 months

Sub Turbines and SR Series

Up to 24 months

Jet Pumps

Up to 24 months

End Suction Centrifugals up to 2 hp

Up to 24 months

Motors, Drives, and Controls


up to 1.5 hp

2 to 5 hp

7.5 hp

10 hp

15 hp

20 to 200 hp

4" Motors

60 months*

60 months*

60 months*

60 months*

36 months*


Single-Phase Control Boxes

24 months*

24 months*

24 months*

24 months*

24 months*


SubDrive/MonoDrive/P-Drive

24 months*

24 months*

24 months*

24 months*

24 months*

24 months*

Single-Phase Protection

24 months*

24 months*





6" Three-Phase Motors w/ Franklin Electric Control


36 months*

36 months*

36 months*

36 months*

36 months*

8" Motors w/ Franklin Electric Control






36 months*

Three-Phase Panels


36 months*

36 months*

36 months*

36 months*

36 months*

Three-Phase Protection


36 months*

36 months*

36 months*

36 months*

36 months*


*Maximum warranty period offered for purchase with product

During the warranty period and subject to the conditions set forth, R.C. Worst & Company Inc, at its discretion, will repair or replace to the original user, the parts that prove defective in materials and workmanship.

Start-up reports and electrical schematics may be required to support warranty claims.

Warranty is effective only if authorized control panels are used. Under no circumstance will R.C. Worst & Company Inc be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from R.C. Worst & Company Inc service facility.

This limited warranty will not apply: (a) to defects or malfunctions resulting from failure to properly install, operate or maintain the unit in accordance with the printed instructions provided; (b) to failures resulting from abuse, accident or negligence; (c) to normal maintenance services and parts used in connection with such service; (d) to units that are not installed in accordance with applicable local codes, ordinances and good trade practices; (e) if the unit is moved from its original installation location; (f) if unit is used for purposes other than for what it is designed and manufactured; (g) to any unit that has been repaired or altered by anyone other than R.C. Worst & Company Inc or an authorized R.C. Worst & Company Inc service provider; (h) to any unit that has been repaired using non factory specified/ OEM parts.

Warranty Exclusions: R.C. Worst & Company Inc MAKES NO EXPRESS OR IMPLIED WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. R.C. Worst & Company Inc SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE.

Liability Limitation: IN NO EVENT SHALL R.C. Worst & Company Inc BE LIABLE OR RESPONSIBLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES RESULTING FROM OR RELATED IN ANY MANNER TO ANY R.C. Worst & Company Inc PRODUCT OR PARTS THEREOF. PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY RESULT FROM IMPROPER INSTALLATION. R.C. Worst & Company Inc DISCLAIMS ALL LIABILITY, INCLUDING LIABILITY UNDER THIS WARRANTY, FOR IMPROPER INSTALLATION. R.C. Worst & Company Inc RECOMMENDS INSTALLATION BY PROFESSIONALS.

Some states do not permit some or all of the above warranty limitations or the exclusion or limitation of incidental or consequential damages and therefore such limitations may not apply to you. No warranties or representations at any time made by any representatives of R.C. Worst & Company Inc shall vary or expand the provision hereof.
