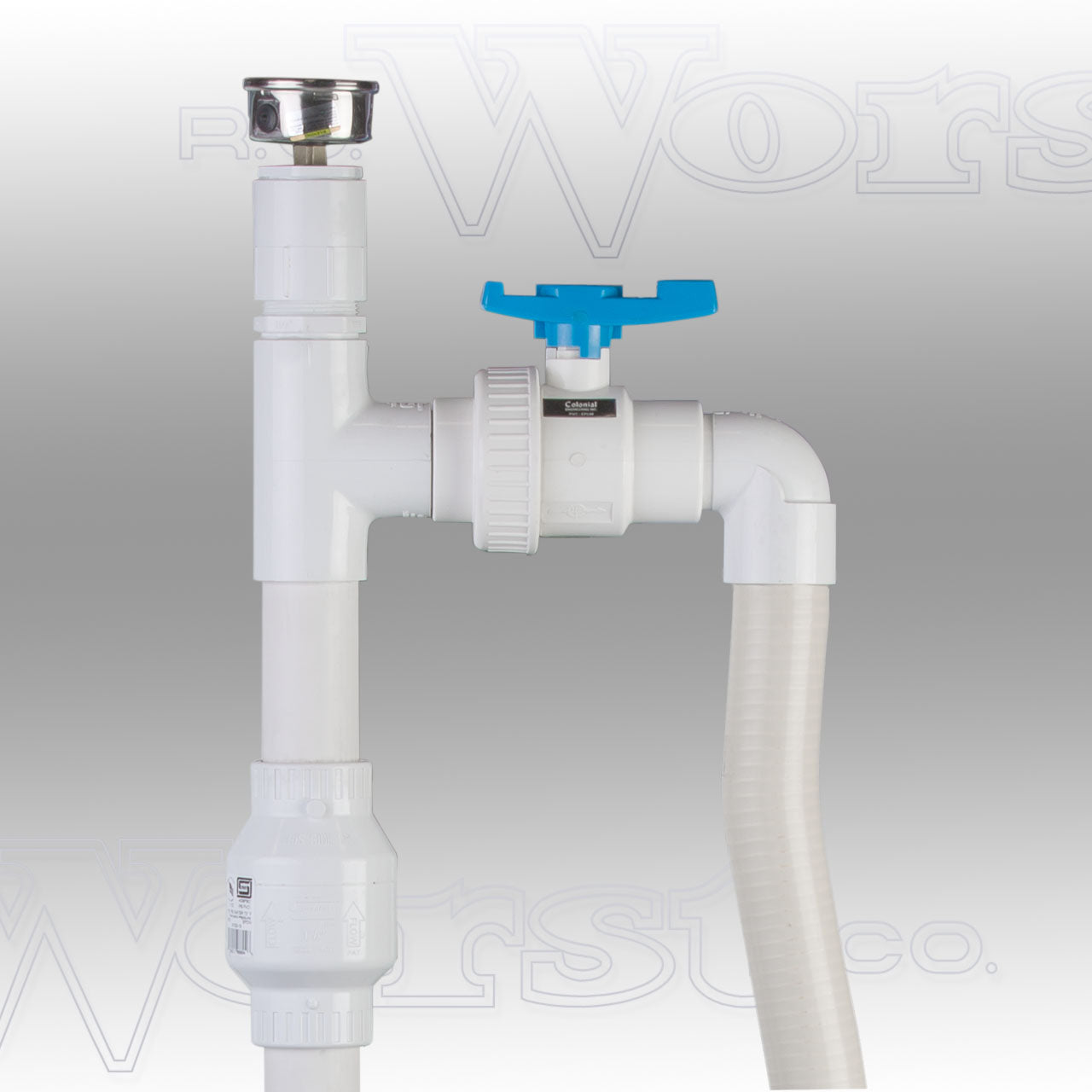

Automated Flow Systems (AFS) Pump Discharge Assemblies
AFS pump discharge assemblies provide the essential plumbing inside of a
pump basin or septic tank. Flexible hose is used to dampen vibrations,
simplify installation, and absorb pump starting torque. AFS pump discharge
assemblies use a universal design that is suitable for both high head and
low head style pumps. Pump Discharge Assemblies are built using
non-corrosive materials. 150 PSI rated high pressure configurations are
available.
AFS Pump Discharge Assembly Applications
- Residential & Light Commercial Pump Stations
- Onsite Systems
- Effluent pump Stations
- Sewage Pump Stations
- Grinder Pump Stations
- Sizes from 1" - 2"
AFS Pump Discharge Assembly Features
- Isolation valve and union
- Optional check valve
- Optional high pressure configurations
- Suitable for both high head and low head style pumps
- Relieves pipe stress due to misalignment
- Dampens vibrations
- Absorbs shock from pump starting torque
- Unrestricted I.D. (standard configuration) for solids handling
applications*
- Easy access test gauge port
- Test gauges in various pressure ranges available
- Adapters for common pump discharge connections included
* High Pressure Configurations Designed for Effluent Applications Only
AFS Pump Discharge Assembly Specifications
|
MODEL
|
PIPE SIZE
|
PUMP CONNECTIONS
|
WORKING PRESSURE
|
MAX FLOW
|
MAX SOLIDS
|
HOSE LENGTH
|
BENDING RADIUS
|
|
PDA100B
|
1"
|
1" / 1.25"
|
75 PSI
|
12 GPM
|
0.90"
|
18"
|
3"
|
|
PDA100BC
|
1"
|
1" / 1.25"
|
75 PSI
|
12 GPM
|
0.90"
|
18"
|
3"
|
|
PDA100BCQ
|
1"
|
1" / 1.25"
|
75 PSI
|
12 GPM
|
0.90"
|
18"
|
3"
|
|
PDA125B
|
1.25"
|
1.25" / 1.5"
|
80 PSI
|
45 GPM
|
1.35"
|
18"
|
4"
|
|
PDA125BC
|
1.25"
|
1.25" / 1.5"
|
75 PSI
|
22 GPM
|
1.35"
|
18"
|
4"
|
|
PDA125BCQ
|
1.25"
|
1.25" / 1.5"
|
75 PSI
|
22 GPM
|
1.35"
|
18"
|
4"
|
|
PDA150B
|
1.5"
|
1.25" / 1.5" / 2"
|
65 PSI
|
60 GPM
|
1.55"
|
18"
|
4"
|
|
PDA150BC
|
1.5"
|
1.5" / 2"
|
65 PSI
|
60 GPM
|
1.55"
|
18"
|
4"
|
|
PDA150BCQ
|
1.5"
|
1.5" / 2"
|
65 PSI
|
60 GPM
|
1.55"
|
18"
|
4"
|
|
PDA200B
|
2"
|
2"
|
60 PSI
|
100 GPM
|
1.95"
|
18"
|
5"
|
|
PDA200BC
|
2"
|
2"
|
60 PSI
|
50 GPM
|
1.95"
|
18"
|
5"
|
|
PDA200BCQ
|
2"
|
2"
|
60 PSI
|
50 GPM
|
1.95"
|
18"
|
5"
|
|
PDAHP100B
|
1"
|
1" / 1.25"
|
150 PSI
|
25 GPM
|
0.75"
|
18"
|
8"
|
|
PDAHP100BC
|
1"
|
1" / 1.25"
|
150 PSI
|
25 GPM
|
0.75"
|
18"
|
8"
|
|
PDAHP125B
|
1.25"
|
1.25" / 1.5"
|
150 PSI
|
45 GPM
|
0.95"
|
18"
|
9"
|
|
PDAHP125BC
|
1.25"
|
1.25" / 1.5"
|
150 PSI
|
45 GPM
|
0.95"
|
18"
|
9"
|
|
PDAHP150B
|
1.5"
|
1.5" / 2"
|
150 PSI
|
60 GPM
|
1.125"
|
18"
|
10"
|
|
PDAHP150BC
|
1.5"
|
1.5" / 2"
|
150 PSI
|
60 GPM
|
1.125"
|
18"
|
10"
|
|
PDAHP200B
|
2"
|
2"
|
150 PSI
|
100 GPM
|
1.65"
|
18"
|
14"
|
|
PDAHP200BC
|
2"
|
2"
|
150 PSI
|
100GPM
|
1.65"
|
18"
|
14"
|
