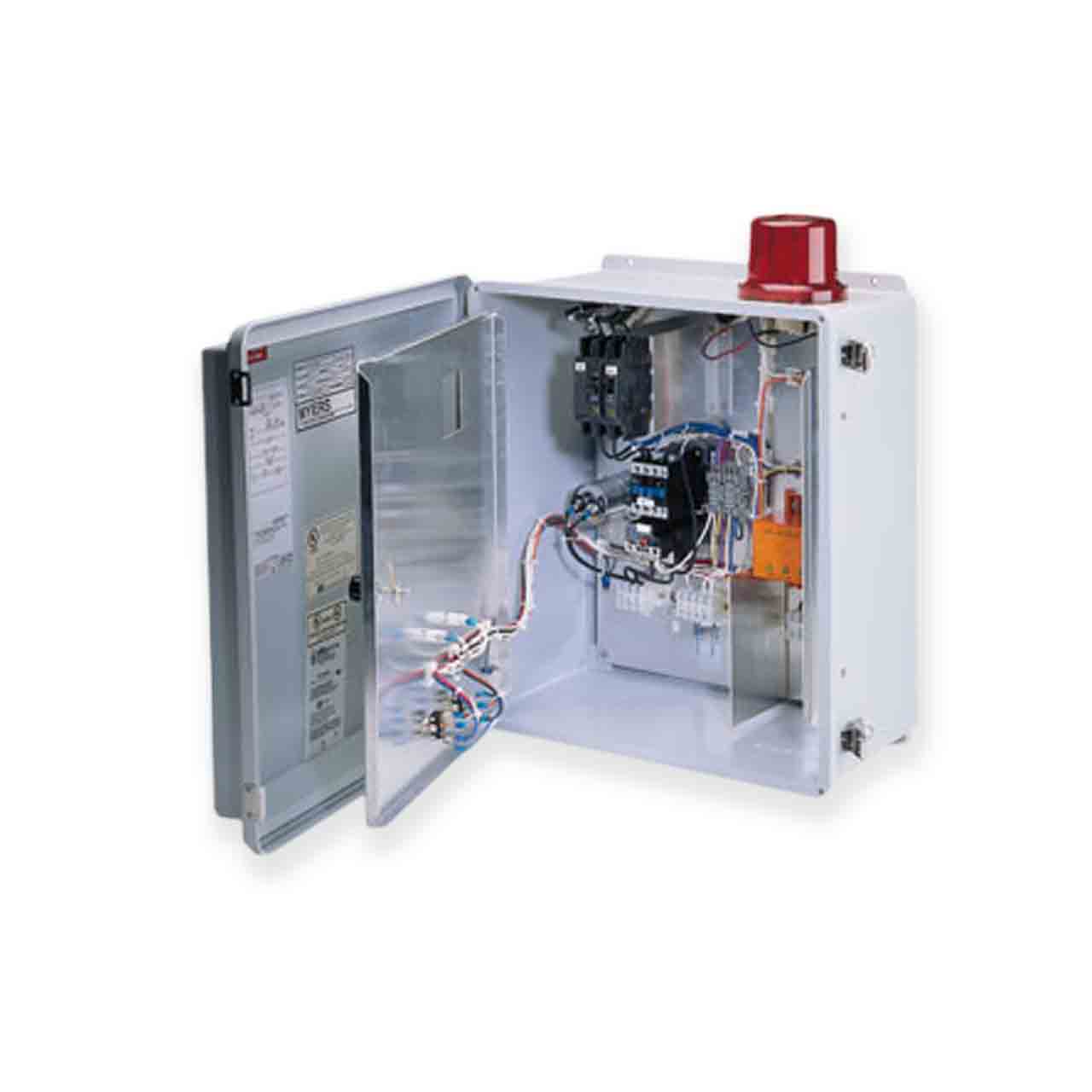

Myers CE(DS)-21SW NEMA 4X Simplex Outdoor Control Panel 230V 1PH

Discontinued or no longer available.
SKU: MYR27655A412


Shipping Weight:
19.0 LBS
Shipping Dimensions
Length: 18 In
Width: 8 In
Height: 16 In
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Discontinued

Myers CE(DS)-21SW NEMA 4X Simplex Outdoor Control Panel

Myers has Re-Engineered the Control Panel Line for Improved Durability, Reliability and Economy. CAD Flexibility Enhances our Response Time to Help us Better Meet your Control Panel Requirements.

Myers CE(DS)-21SW NEMA 4X Simplex Outdoor Control Panel Features

  • Quality Electrical Components Assure Reliable, Automatic Pump Operation
    • IEC Horsepower-Rated Contactor (Single Phase) and Motor Starters (Three Phase) Rated at Over 1 Million Cycles.
    • Three Phase Starters with Ambient-Compensated Quick-Trip Overloads for Maximum Motor Protection.
    • Designed for use With Three Standard Mercury Float Switches, Off-On-Lag-Alarm. (Not Included With Panel, Please Order Separately.)
  • Corrosion Resistance for Long Life
    • Outdoor Panels of Weathertight NEMA 4X Fiberglass with Aluminum Back Panel.
    • Indoor Panels of Enamel-Coated Galvanized Steel.
  • Meets NFC and UL Standards for Safety
    • UL Approved Panel Designs.
    • 100VA Control Circuit Transformer With Primary Fusing on 3-Phase Panels.
    • Main Circuit Breaker.

Myers CE(DS)-21SW NEMA 4X Simplex Outdoor Control Panel Standard Features

  • Corrosion-Resistant Enclosure: Nema 4X Fiberglass (outdoor)
  • Aluminum Back Panel for Nema 4X Only
  • IEC Contractor: Silver Cadmium Oxide Contacts
  • IEC Motor Starter: 3-Pole Bi-Metal Overload Relay
  • 150VA Control Circuit Transformer: Primary Fusing on 3ø
  • Main Circuit Breaker
  • Control Circuit Fuse: 1 Amp
  • Alarm Circuit Fuse: 1 Amp
  • Hand-Off-Auto Switch: Momentary In-Hand Position
  • Alarm Test Switch
  • Amber Pump Run Light
  • Red Seal Leak Light: Used with Double Seal Pumps Only
  • Terminal Blocks: For Pump and Float Connections
  • Ground Lug
  • Alarm Light: Nameplate Mounted Through Enclosure Front (Nema 4X)

Myers CE(DS)-21SW NEMA 4X Simplex Outdoor Control Panel Specifications

  • ENCLOSURE: Nema 4X
  • HORSEPOWER: 0.5 to 2.0HP
  • VOLTS/PHASE: 230V/1ø
  • FULL LOAD AMPS: <15FLA

NOTE: For Double Seal Pumps with Seal Leak Sensor, Panel has Seal Leak Light.


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

MYERS LIMITED WARRANTY

Myers® warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below

ProductWarranty Period whichever occurs first:
Jet pumps, small centrifugal pumps, submersible pumps and related
accessories
12 months from date of original installation, or 18 months from date of manufacture
Fibrewound Tanks5 years from date of original installation
Fibrewound Tanks5 years from date of original installation
Sump/Sewage/Effluent Products12 months from date of original installation, or 36 months from date of manufacture
Battery Backup Units
MBSP-2, MBSP-2C
MBSP-3, MBSP-3C
12 months from date of original installation, or 18 months from date of manufacture
24 months from date of original installation, or 30 months from date of manufacture
Wastewater Solids Handling Pumps12 months from date of shipment from factory or 18 months from date of manufacture

Our warranty applies only where such products are used in compliance with the requirements of the applicable product catalog and/or manuals. For additional information, please refer to the applicable standard limited warranty featured in the product manual.

Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.

Your only remedy, and MYERS’s only duty, is that MYERS repair or replace defective products (at MYERS’s choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.

MYERS SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.

THE FOREGOING LIMITED WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING LIMITED WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION PROVIDED HEREIN.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and You may also have other rights which vary from state to state.

This Limited Warranty is effective April 1, 2014 and replaces all undated warranties and warranties dated before April 1, 2014.
