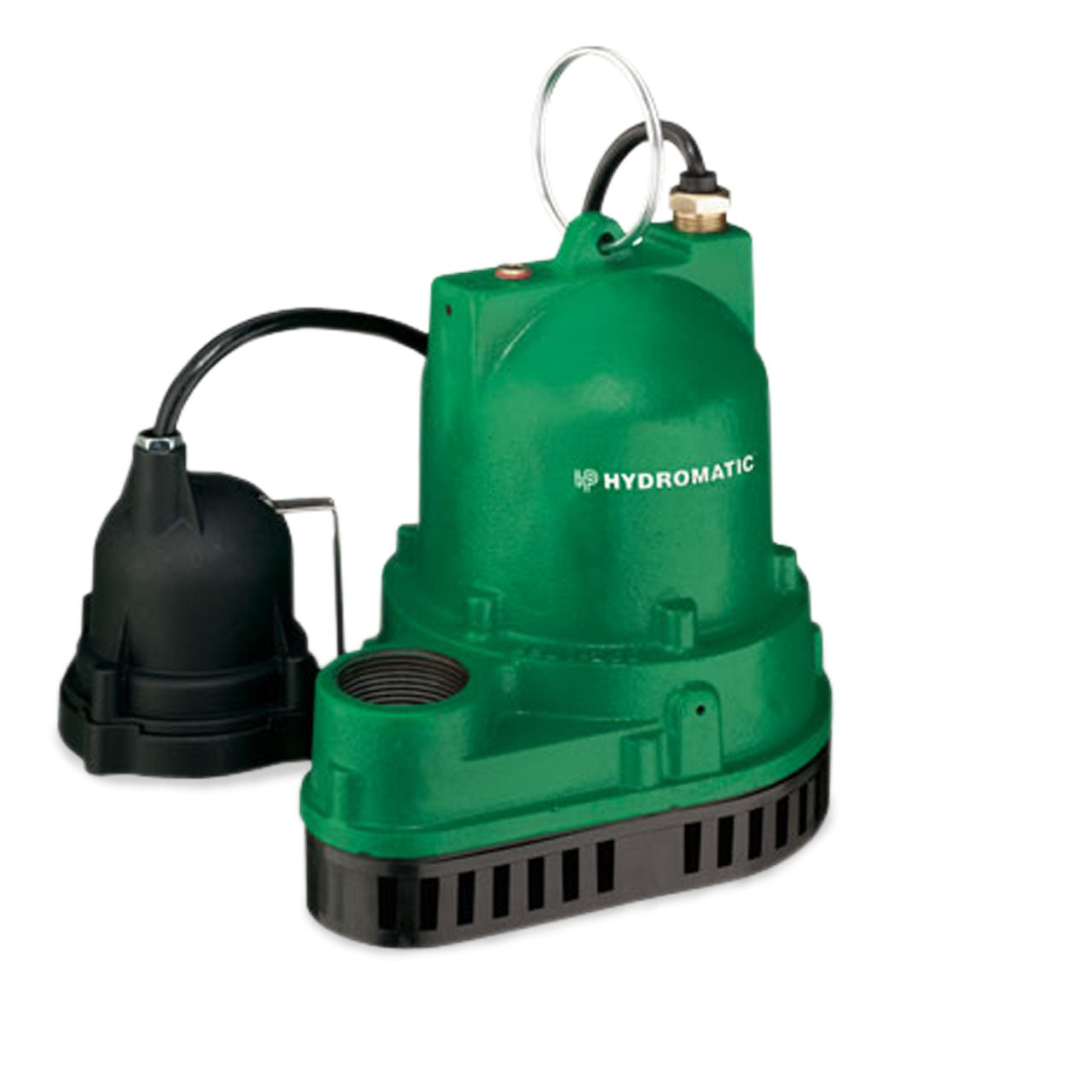

Hydromatic D-A1 Submersible Sump Pump 0.30 HP 115V 1PH 10' Cord Automatic

Price: Discontinued
+ -
Discontinued or no longer available.
SKU: HTC522480007

Hydromatic Pump Logo

Item Discontinued, See Similar Replacement: Myers Submersible Sump Pump MS33D10 0.33 HP 115V 20' Cord Automatic

Hydromatic D-A1 Description

The Hydromatic D-A1 sump pump is specifically designed to meet the demands of basement sump and septic tank effluent applications

Hydromatic D-A1 Typical Application

  • Basement Sumps
  • Dewatering
  • Light Effluent
  • Industrial Circulators
  • Transfer Tanks

Hydromatic D-A1 Superior Features

  • Carbon/Ceramic mechanical seal
  • Oil-filled motor with automatic reset thermal overload
  • Uses single-row ball-bearing construction
  • Includes diaphragm pressure switch

Hydromatic D-A1 Technical Details

  • BODY CONSTRUCTION: Cast Iron
  • HORSEPOWER: 0.30 HP
  • RPM: 1550
  • MAXIMUM HEAD: up to 25'
  • MAXIMUM CAPACITY: up to 48 GPM
  • DISCHARGE PIPE SIZE: 1.5" NPT Discharge
  • MAXIMUM SOLIDS HANDLING SIZE: 1/2"
  • CORD LENGTH: 10' Power Cord
  • VOLTAGE: 1ø, 115V
  • FULL LOAD AMPS: 8.0
  • MOTOR: Cast Iron
  • IMPELLER CONSTRUCTION: Thermoplastic

Hydromatic D-A1 Pump Curve

Hydromatic Pump Curve for the W-A1 Pump and 118 Pump Basin

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


HYDROMATIC warrants to the original consumer purchaser (“Purchaser” or “You”) of HYDROMATIC Sump Pumps, Effluent Pumps, Sewage Pumps (other than 2-1/2"), and Package Systems, that they will be free from defects in material and workmanship for the Warranty Period of 36 months from date of manufacture.

Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.

Your only remedy, and HYDROMATIC’s only duty, is that HYDROMATIC repair or replace defective products (at HYDROMATIC’s choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.

EXCEPTIONS:

Exceptions are warranted for a period of 12 months from date of purchase or 18 months from date of manufacture, whichever comes first.

Hydromatic Special Application Pumps:

  • HCU15/HCU15S/HCU20S
  • HUP
  • P33A1
  • HY106
  • HPUSP125

Battery Back-Up Sump Pumps:

  • A+ Battery Back-up
  • FG-A1
  • FG-100A
  • FG-200A

Filtered Effluent Pumps:

  • HE Series

Grinder Pumps:

  • HPGR Series

2-1/2" Sewage Pumps:

  • S3S Series
  • S4S Series
  • SB3S Series
  • SB4S Series
All accessories and repair parts

HYDROMATIC SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION EXPRESSLY PROVIDED HEREIN.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and You may also have other rights which vary from state to state.

This warranty supersedes and replaces all previous warranty publications.

HYDROMATIC

740 East 9th Street, Ashland, OH 44805

Phone: 888-957-8677 • Fax: 888-840-7867 • Web Site: http://www.hydromatic.com
